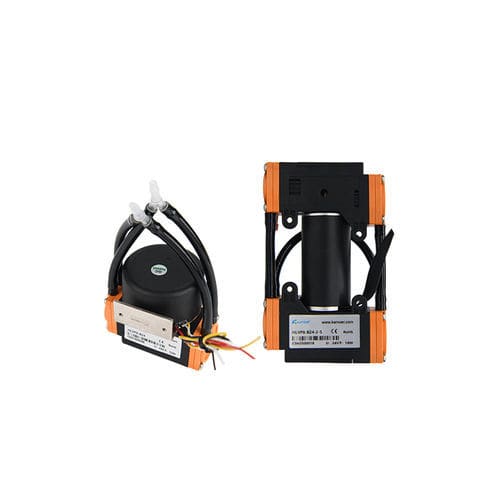

Laboratory vacuum pump HLVP8 seriesmedicaldiaphragmdry
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, medical
- Technology
- diaphragm
- Options
- dry
- Flow
Min.: 360 l/h
(95.1 us gal/h)Max.: 480 l/h
(126.8 us gal/h)- Pressure
0.1 MPa
Description
★ Long life
★ Brushless motor
★ Wide application
★ Maintenance-free
★ Large flow
★ Chemical stability
★ Dry running
▲ HLVP8 Voltage: 12V/24V Motor: (HLVP8-Outer rotor) brushless motor Flow: More than 360L/H Positive pressure: More than 0.1Mpa(in parallel) Negative pressure: More than 0.09Mpa(in series); More than 0.07Mpa(in parallel) Diaphragm material: EPDM Lifetime: 6000H Noise: Less than 72dB ▲ HLVP8-2 Voltage: 12V/24V Motor: Brushless motor Flow: More than 270L/H(D) Positive pressure(Double head) More than 0.1Mpa Negative pressure(Double head) More than 0.098Mpa Diaphragm material: EPDM Lifetime: 5000H (Double head) Noise: Less than 75dB
# Automation # Laboratory # Medical Equipment # Gas Analysis
