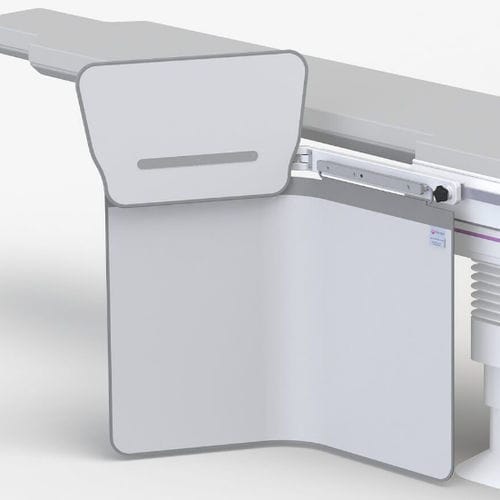

100 cm wide lower body table shields with a single friction pivot, integrated accessory rail, and optional top shields.
- Reduces exposure to scatter radiation emanating from the table or patient’s body.
- Easily mounts to either side of the table allowing the pivotal arm to always face the head end.
- Lightweight, durable structure supporting a flexible lead curtain.
- Curtain is available in one piece or split into three separate overlapping panels.
- 100 cm wide x 70 cm high curtain providing a safe zone of occupancy.
- 51 cm wide attachment bracket slides onto a 25 mm high tableside accessory rail (max. 11 mm depth).
- Two 35 cm long integrated accessory rails, 10 x 25 mm (fitted), 9.5 x 28.6 mm (supplied). Option for one 7.7 x 25 mm rail (fitted).
- Pivotal arm with a single friction pivot can swivel outwards to form a 49 cm wing.
- Self-adjusting friction pivot ensures no unwanted curtain movement even when the table is tilted.
- Curtains 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer is unable to tear or fall away unnoticed.
- Curtain forms around an under table x-ray tube without impeding movement.
- If required the curtain can also hold two semi-flexible top shields, 1 x 57 cm and 1 x 27 cm short (312/DS/3.41).
Product codes:
312/E-015 (100 cm wide shield only)
312/E-016 (100 cm shield & 57 cm wide lift-off top shield)
add /P to product codes for a shield split into three separate overlapping panels.
Optional: 1 x 57 cm wide semi-flexible, fold-down top shield. (312/DS/3.33)
