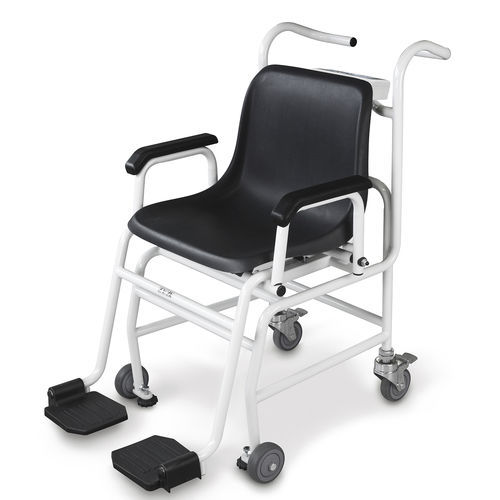

Digital patient weighing scale MCN 200K-1M

electronicdialysisfor wheelchairs

Description
Mobile, integrable chair scale for wireless transfer of weighing data to EMR/EHR systems. Designed for clinical and geriatric use, the IoT-Line MCN 200K-1M enables weighing at the patient’s location and direct digital integration of results to reduce manual documentation errors.

Key features

• Product family: MCN
• Approval as medical device according to Regulation (EU) 2017/745 (MDR)
• Class III (conformity assessment optional)
• Integrated WiFi for wireless transfer of weights to digital patient records (EMR/EHR)
• KERN Universal Port (KUP) for external interface adapters (RS-232, USB, Bluetooth, WiFi, Ethernet)
• Mobile version with two steerable rollers and rear locking brakes; four wheels for easy positioning at bedside
• Large-diameter rollers for overcoming thresholds and edges
• Ergonomically optimised seat, two foldable armrests and foldable footrests to facilitate transfers
• Contrasting black seat, footrests and armrests — suitable for patients with dementia
• Ergonomically positioned carrying handles
• Hold function: computes a mean weight when the patient cannot sit still
• BMI function to classify underweight/normal/surplus weight
• High-resolution readability: increase readability [d] by one decimal for 5 s by key press
• Battery or mains operation; rechargeable battery optional

Applications

• Inpatient facilities
• Outpatient clinics
• Dialysis centres
• Retirement and nursing homes
• Rehabilitation facilities
• Facilities for people with disabilities

Technical Data
Weighing capacity [Max] | 250 kg
Readability [d] | 0.1 kg
Units | kg
Interfaces | RS-232 (optional), Bluetooth (optional), WiFi, Alibi memory (optional, factory), USB-Device (optional), KUP
Dimensions weighing platform (W×D×H) | 435×380×515 mm
Supplied power supply | Power supply & battery function (battery not included)
Battery operating time | 20 h
Display device cable length | 1.8 m
Net weight | 22.1 kg
Conformity assessment possible ex works | yes
Approval according to 2017/745 (MDR) | yes
Construction type of the scale | Single-range balance
GTIN/EAN number | 4045761242746

Specifications / technical details

• Model: MCN 200K-1M
• Brand: KERN
• Maximum capacity: 250 kg
• Readability (d): 0.1 kg
• Units: kg
• Interfaces available: WiFi (integrated); RS-232 (optional), Bluetooth (optional), USB-Device (optional); Alibi memory (optional, factory); KUP-compatible
• Weighing platform dimensions (W×D×H): 435 × 380 × 515 mm
• Power supply: AC adapter supplied; battery function (battery not included); rechargeable battery optional
• Battery operating time: 20 h
• Display cable length: 1.8 m
• Net weight: 22.1 kg
• Conformity / approval: conformity assessment possible ex works; medical device according to MDR 2017/745
• GTIN / EAN: 4045761242746
