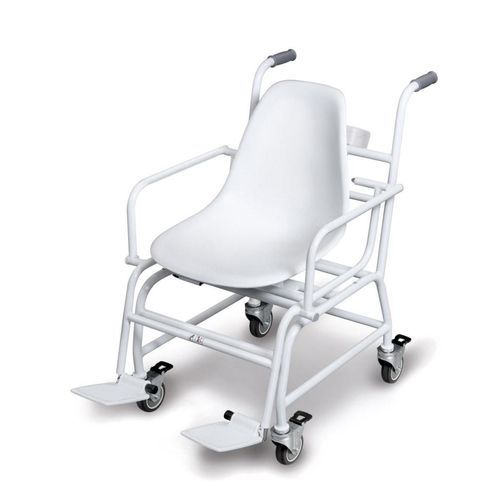

Chair scale MCF 300K-1M

electronicdigitalfor hospitals

Overview

• Mobile chair scale MCF 300K-1M designed for medical use with four steerable wheels and locking brakes; prepared for integration into clinical IT via integrated WiFi and compliant with Regulation (EU) 2017/745 (MDR).

Technical data (excerpt)
Weighing capacity [Max] | 300 kg
Readability [d] | 0.1 kg
Units | kg
Interfaces | WiFi (integrated), KUP (external adapters: RS-232, USB, Bluetooth, WiFi, Ethernet), RS-232 (optional), Bluetooth (optional), USB-Device (optional), Alibi memory (optional, factory)
Platform dimensions (W×D×H) | 465×530×410 mm
Power supply | Mains with battery function; rechargeable battery optional (battery not included)
Battery operating time | approx. 20 h
Display cable length | 1.8 m
Net weight | 21.55 kg
Approval | MDR 2017/745 (medical)

Applications

• Intended for hospitals, medical practices, nursing homes and rehabilitation centres; suitable for high patient throughput and for weighing overweight patients; facilitates safe transfers between bed and chair.

Features / specifications

• Model: MCF 300K-1M
• Max. capacity: 300 kg
• Readability: 0.1 kg
• Platform dimensions (W×D×H): 465 × 530 × 410 mm
• Interfaces: integrated WiFi; optional RS-232, Bluetooth, USB-Device; Alibi memory (factory); KUP for external adapters
• Power: mains with battery function; optional rechargeable battery (battery not included)
• Battery operating time: approx. 20 h
• Display cable length: 1.8 m
• Mobility: four steerable wheels with locking brakes; large-diameter rollers to cross thresholds
• Ergonomics: comfort seat, foldable armrests and footrests to ease transfers
• Functions: Hold function (mean value), BMI calculation
• Medical approval: compliant with Regulation (EU) 2017/745
• GTIN/EAN: 4045761494046
