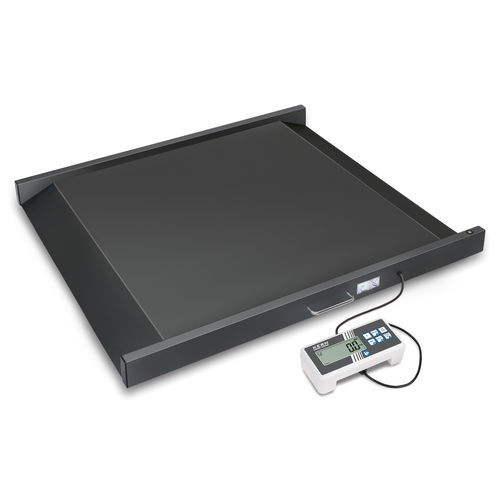

Electronic platform scale MWN 300K-1M

digitalfor hospitalsmedical

Overview
Robust, integratable wheelchair platform scale designed for wireless transfer of weighing data to EMR/EHR systems. Low-profile, accessible from either side and suitable for weighing patients in wheelchairs and obese patients.

Key features

• Integrated WiFi interface for wireless transfer of weights directly into digital patient records (EMR/EHR)
• KERN Universal Port (KUP) permits connection of external interface adapters (RS-232, USB, Bluetooth, WiFi, Ethernet, analogue, etc.) without installation outlay
• Low-profile platform, accessible from either side — ideal for wheelchair users
• Large steel weighing plate suitable for obese patients
• Secure, non-slip positioning with height-adjustable rubber feet
• Level indicator for precise levelling
• Hold function: determines a mean average weight value when patients cannot stand still
• BMI function to indicate underweight / normal weight / overweight
• Display device with two magnets on the back for fixing to metallic surfaces
• Portable: transport handle and two rollers; compact storage
• Wall mount for display device (standard)
• Battery or mains-powered; rechargeable battery operation optional
• Approved as a medical device according to Regulation (EU) 2017/745 (MDR)
• Conformity assessment possible ex works

Applications

• Inpatient facilities (hospitals)
• Outpatient clinics
• Dialysis centres
• Retirement and nursing homes
• Rehabilitation facilities
• Facilities for people with disabilities

Technical Data (table)
Weighing capacity [Max]: 300 kg
Readability [d]: 0.1 kg
Units: kg
Interfaces: RS-232 (optional), Bluetooth (optional), WiFi, Alibi memory (optional, factory), USB-Device (optional), KUP
Dimensions weighing platform (W×D×H): 740 × 901 × 65 mm
Supplied power supply: Power supply & battery function (battery not included)
Battery operating time: 20 h
Display device cable length: 1.8 m
Net weight: 28.6 kg
Conformity assessment possible ex works: yes
Approval in accordance with 2017/745 (MDR, med.): yes
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761242739

Characteristics / technical specifications

• Model: MWN 300K-1M (IoT-Line)
• Max capacity: 300 kg
• Readability: 0.1 kg
• Platform dimensions (W×D×H): 740 × 901 × 65 mm
• Interfaces: WiFi standard; RS-232, Bluetooth, USB-Device, Alibi memory, KUP optional
• Power: mains and battery function (battery not included); battery operating time approx. 20 h
• Net weight: 28.6 kg
• Functions: Hold, BMI, level indicator, transport handle and rollers, magnetic display fixation, wall mount for display
• Approvals: Medical device MDR (EU) 2017/745; conformity assessment possible ex works
• GTIN/EAN: 4045761242739
