Electronic platform scale MWN 300K-1M

digitalfor wheelchairsfor hospitals

Short description

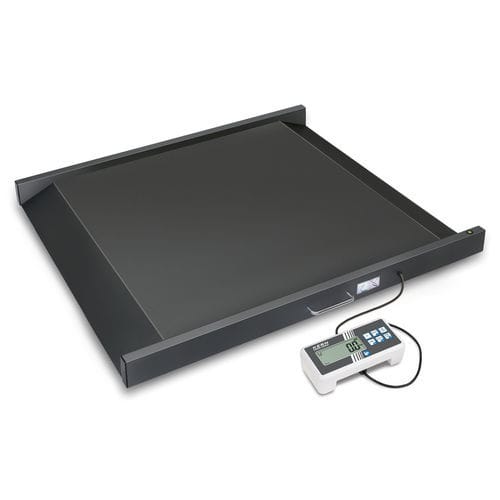

Robust, integratable wheelchair platform scale (product family: MWN) prepared for wireless transfer of weighing data to EMR/EHR systems. Low-profile, double-sided approach platform with large steel weighing plate and portable transport features.

Features

• Verification class III available (verification optional)
• Approved as a medical device according to Regulation (EU) 2017/745 (MDR)
• Integrated WiFi interface for wireless transfer of weight values directly into digital patient records (EMR/EHR)
• KERN Universal Port (KUP) for connecting external interface adapters (RS-232, USB, Bluetooth, WiFi, Ethernet) without installation work
• Low-profile platform accessible from both sides — suitable for weighing patients in wheelchairs
• Large steel weighing plate suitable for obese patients
• Height-adjustable rubber feet for secure, non-slip positioning
• Level indicator for precise levelling
• Hold function for mean-value calculation when patients cannot stand still
• BMI function to classify underweight / normal weight / overweight
• Display unit with two rear magnets for fixing to metallic surfaces
• Portable design with handle and two rollers for easy transport and compact storage
• Wall mount for display unit included as standard
• Mains or battery operation (rechargeable battery optional)

Applications

• Inpatient facilities
• Outpatient facilities
• Dialysis centres
• Retirement and nursing homes
• Rehabilitation facilities
• Facilities for people with disabilities

Technical specifications

• Model: MWN 300K-1M
• Product family: MWN (IoT-Line)
• Weighing capacity (Max): 300 kg
• Readability (d): 0.1 kg
• Units: kg
• Interfaces: WiFi integrated; optional: RS-232, Bluetooth, USB-Device, Alibi memory (optional, factory), KUP for additional modules
• Dimensions weighing platform (W×D×H): 740 × 901 × 65 mm
• Supplied power: mains adapter & battery function (battery not included); rechargeable battery optional
• Battery operating time: approx. 20 h
• Display device cable length: 1.8 m
• Net weight: 28.6 kg
• Conformity assessment possible ex works
• Approval according to 2017/745 (MDR, med.): Yes
• Construction type: single-range balance
• GTIN / EAN: 4045761242739
