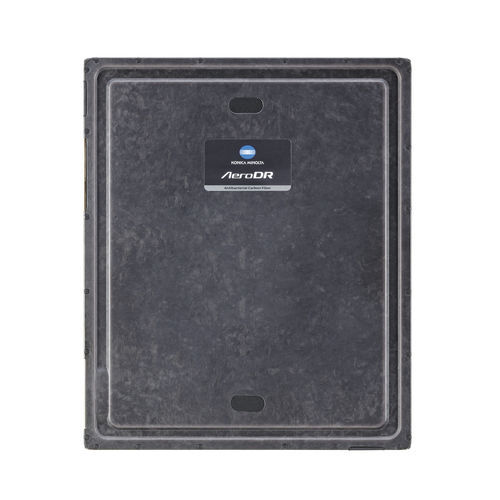

Multipurpose radiography flat panel detector AeroDR3 SL

portablewirelesswaterproof

Glass-Free Scintilator Lightest Weight Flat Panel Detectors Antibacterial Design High Image Quality – 100 micron Super Monocoque Housing Structure Excellent Grip Design Military Drop Test Certified Rapid Cycle Time Aero Storage Realism Image Processing Features Premium Glass-Free Digital Radiography Systems Antibacterial Carbon SMC Surface Not only coating, cover material is Antibacterial. Long lasting for many years Glass-Free Scintillator Flexible Scintillator Layer High Image Quality 100 Micron, High DQE and Lower Radiation Doses Super Monocoque Housing Structure Excellent grip Design Very Robust Military drop test certified 400 kg surface load, 180 kg point load, 130 kg bend pressure CS-7 Integrated Console Realism image processing Intelligent Grid Tube / Gauze Lung Lack / Motion Blur Specifications Detection method Indirect conversion method Scintillator CsI (Cesium Iodide) External dimensions (W×D×H) 384 ×460 ×15mm (15.1×18.1×0.6 inchs) Weight 1.8kg (4.0lb) Pixel size 200 μm (100 μm : optional license is necessary) DQE 1mR,RQA5 *5 59% (1cycle /mm) 72% (0cycle /mm) MTF 62% (1cycle/mm) Image area size 348.8 × 425.6mm (13.7×16.8 inch) 3,488×4,256 AD conversion 16 bit (65,536 gradients) Usable grid frequency 60 / 40 / 34 lp / cm Antibacterial An inorganic antibacterial agent kneaded into the exterior material. Communication Dedicated wired ethernet connection/Wireless LAN (IEEE802.11a / IEEE802.11n compliant ) Auto Exposure Detection (AED) Available (AeroSync) Expected product life time Same as the life time of AeroDR 3 1417SL main body Durability: Surface load *6 400kg@ effective image area overall
