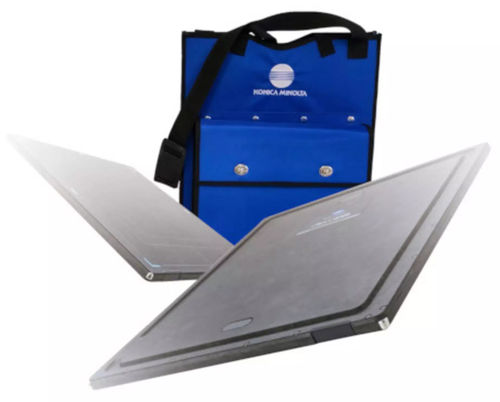

Multipurpose radiography flat panel detector AeroDR

portablewirelesswaterproof

Product type
Portable digital X-ray detector solution for point-of-care and mobile radiography

• Tablet-based acquisition with portable detector kits
• Available detector sizes: 10"x12" and 14"x17"
• Two-component kit pairing detector and AeroLink communication unit

Functionalities

• Designed for point-of-care and on-site radiographic exams
• Tablet acquisition enables immediate image review and basic post-processing
• Wireless data transmission in portable kit configuration
• Modular bag system for rapid deployment and transport

Features
Konica Minolta’s AeroDR Portable combines flat-panel detectors and a tablet PC in a carry kit to provide rapid image preview and flexible deployment for clinical workflows.

• AED (Automatic Exposure Detection) with AeroSync hybrid detection
• Fast charging options depending on model (examples provided per model)
• Lightweight detector options: example weights 1.5–1.8 kg (model-dependent)
• High-resolution option (100 μm pixel size) for improved microstructure visibility
• Robust surface load capacity for patient handling
• Improved wireless cycle time (example: ~6 s for selected detectors)
• Water-resistant models available (IPx6)
• Fully wireless operation for image transfer and portable use

Specifications (selected model summaries presented on page)
AeroDR3 HQ 1012
Pixel size: 100 μm (200 μm selectable)
DQE: 56% (1 cycle/mm) / 72% (0 cycle/mm)
Pixel matrix: 2456 x 2968
Surface load capacity (distributed): 400 kg
Surface load capacity (point load): 180 kg
Durability: MIL-STD-810G military drop test
Water resistance: IPx6
Charging time (empty to full): 30 mins
Weight: 1.5 kg with battery

AeroDR3 SL 1417
Scintillator: Glass-free + CSI
Pixel size: 100 μm (200 μm selectable)
DQE: 59% (1 cycle/mm) / 72% (0 cycle/mm)
Pixel matrix: 3488 x 4256 (14x17)
Exterior surface: Carbon SMS - Antibacterial - Long Lasting
Battery performance: 147 images / 4.1 h
Surface load capacity (distributed): 400 kg
Durability: MIL-STD-810G military drop test
Water resistance: IPx6
Charging time (empty to full): 15 mins
Weight: 1.8 kg with battery

AeroDR NS 14x17
Pixel size: 150 μm
DQE: 40% (1 lp/mm)
Pixel matrix: 2304 x 2800
Surface load capacity (distributed): 150 kg
Surface load capacity (point load): 100 kg
Battery performance: 212 images / 5.9 h
Charging time (empty to full): 3 hrs
Weight: 3.6 kg with battery

Portable bag (kit)
Model: 99HC2166-2018
Panel and laptop compartment (excl. parts): 1000 g; 405 x 480 x 70 mm
Panel and laptop compartment (incl. parts): 5550 g
Complete bag: 1700 g; 405 x 480 x 165 mm
Complete bag including equipment: 7550 g
Battery life (Surface Book tablet mode): 5 hours; (book mode): 17 hours

Notes
Also available in 10"x12" size with alternative specifications. Default pixel size is 100 μm; 200 μm selectable to reduce storage requirements.

Technical specifications

• Product name: AeroDR Portable
• Brand: Konica Minolta
• Detector sizes supported: 10"x12" and 14"x17"
• Detector pixel size options: 100 μm (default), 150 μm (NS model), 200 μm selectable
• Sample pixel matrices: HQ 1012 = 2456 x 2968; SL 1417 = 3488 x 4256; NS 14x17 = 2304 x 2800
• DQE examples: up to 59% (1 cycle/mm) and up to 72% (0 cycle/mm) depending on model
• Surface load capacity (distributed): up to 400 kg (SL/HQ models)
• Surface load capacity (point load): up to 180 kg (HQ example) or 100 kg (NS example)
• Durability: MIL-STD-810G drop test certified for listed models
• Water resistance: IPx6 for selected models (e.g., SL 1417, HQ 10x12)
• Charging time examples: 15 mins (SL 1417), 30 mins (HQ 1012), 3 hrs (NS variants)
• Weights with battery: examples include 1.5 kg (HQ 1012), 1.8 kg (SL 1417), 3.6 kg (NS 14x17)
• Battery performance examples: 147 images / 4.1 h (SL/HQ); 212 images / 5.9 h (NS)
• Cycle time (wireless mode): improved to ~6 seconds for some models
• Operation: tablet-based image acquisition; fully wireless kit (data transmission and power in portable configuration)
• Portable kit model code (bag): 99HC2166-2018
