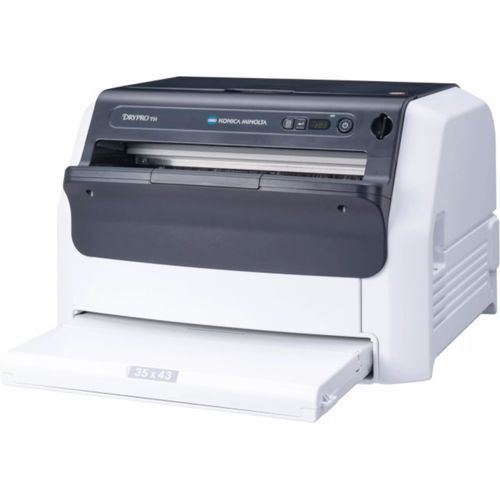

X-ray film printer DryPro TH 1

Product overview
DryPro TH 1 Tray is a compact medical thermal dry printer designed to receive DICOM image sources and produce diagnostic-quality hard copies on Konica Minolta TR‑S dry imaging film. The unit supports simultaneous print jobs from multiple modalities and workstations and accepts output from CS‑7 / ImagePilot.

Key features

• Compact, lightweight design requiring minimal installation space
• DICOM network support for printing from modalities and PACS workstations
• Compatible with Konica Minolta Medical Dry Imaging film TR‑S
• Printed pixel size: 84.7 µm (300 dpi); supports pixel input size 87.5 µm
• Throughput up to approx. 50 sheets/hour for 14×17 in; initial print time approx. 105 s for 14×17 in
• RFID option available to prevent contamination with third‑party films

Applications

• Diagnostic radiology departments and imaging centers
• PACS hardcopy output and report archiving
• Mobile imaging units and clinics requiring compact printing solutions

Specifications

• Printing method: Thermal head printing
• Number of trays: 1
• Applicable film: Konica Minolta Medical Dry Imaging film TR‑S
• Film sizes supported: 14×17 in (35×43 cm), B4 (26×36 cm), 10×12 in (25.4×30.5 cm), 8×10 in (20.3×25.4 cm)
• Film packing unit: 100 sheets
• RFID contamination prevention: With RFID / Without RFID
• Performance (max.): Approx. 50 sheets/hour for 14×17 in
• Initial printing time: Approx. 105 s for 14×17 in
• Printed pixel size: 84.7 µm (300 dpi)
• Printing bit depth (gradations): 12 bits (4094 levels)
• Supported formats: 1, 2, 3, 4, 6, 8, 9, 12, 15, 16, 18, 20, 24, 25, 28, 30, 32, 35, 36, 40, 42, 48, 49, 54, 56, 60, 64, 70
• External dimensions (W×D×H): 530×470×365 mm (1 tray)
• Weight: approx. 32 kg (1 tray)
• Ambient operating conditions: 40%–70% RH (at 15°C), 15%–70% RH (at 30°C), no condensation
• Power supply: AC 100–240 V, 5–2 A, 50–60 Hz

Options

• DP TH FEEDER: Sheet-feeder unit
• DP TH MAGAZINE L: L magazine (compatible with 14×17 in)
• DP TH MAGAZINES: S magazine (compatible with B4, 10×12 in, 8×10 in)
