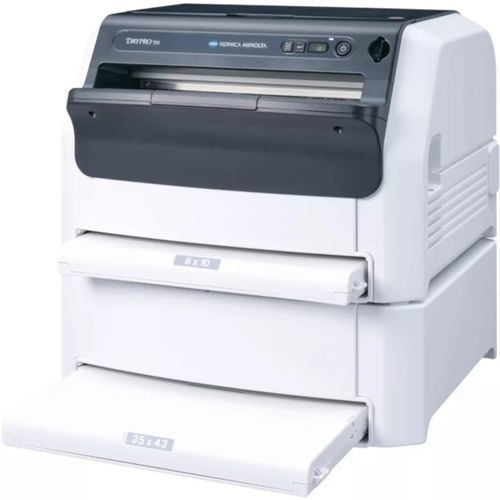

X-ray film printer DryPro TH 2
Add to favorites
Compare this product
Description
Overview
Features
Specifications (table)
- Thermal imager
- Compact and lightweight; does not require a large installation space
- Receives and prints certified image sources, such as medical diagnostic equipment (modalities) and workstations, via the DICOM network; supports simultaneous print jobs from multiple sources
- Output compatible with CS-7 / ImagePilot and DICOM modalities
- Supports Konica Minolta Medical Dry Imaging film TR-S in sizes 8×10 in (20.3×25.4 cm), 10×12 in (25.4×30.5 cm), 14×17 in (35×43 cm) and B4 (26×36 cm); capacity up to 100 sheets
Features
- Compact design
- Economical operation
- Supports pixel size of 87.5 µm
- Fast throughput (approx. 50 sheets/hour for 14×17 in)
Specifications (table)
- Printing method: Thermal head printing
- Number of trays: 2
- Applicable film: Konica Minolta Medical Dry Imaging film TR-S
- Film sizes: 14×17 in (35×43 cm), B4 (26×36 cm), 10×12 in (25.4×30.5 cm), 8×10 in (20.3×25.4 cm)
- Film packing unit: 100 sheets
- Contamination prevention: With RFID / Without RFID
- Max performance: Approx. 50 sheets/hour (14×17 in)
- Initial printing time: Approx. 105 sec (14×17 in)
- Printed pixel size: 84.7 µm (300 dpi)
- Supported pixel size referenced: 87.5 µm
- Printing bit depth (gradations): 12 bits (4094 levels)
- Available formats: 1, 2, 3, 4, 6, 8, 9, 12, 15, 16, 18, 20, 24, 25, 28, 30, 32, 35, 36, 40, 42, 48, 49, 54, 56, 60, 64, 70
- External dimensions (W×D×H): 530 × 470 × 545 mm (2 trays)
- Weight: approx. 43 kg (2 trays)
- Ambient operating conditions: 40%–70% RH at 15°C; 15%–70% RH at 30°C (no condensation)
- Power supply: AC 100–240V, 5–2A, 50–60Hz
- Options: DP TH MAGA2lNE L (L magazine for 14×17 in); DP TH MAGAZINES (S magazine for B4, 10×12 in, 8×10 in)
