Transcutaneous neurostimulator KM360

for sensory nerve stimulationfor peripheral nerve stimulation

Product overview

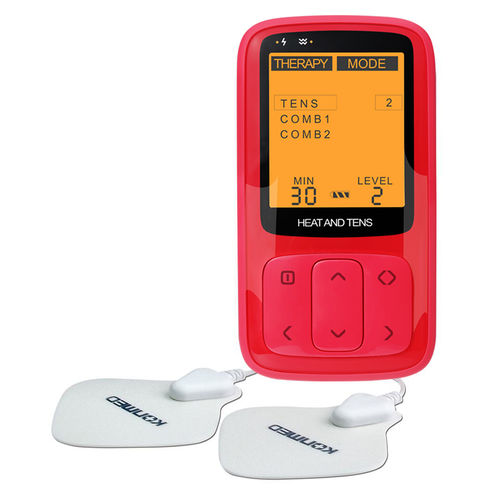

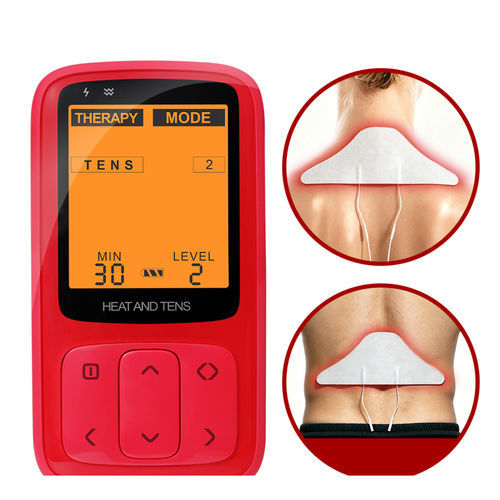

The KM360 Heating Pain Relief Stimulator is a portable therapeutic device designed to relieve chronic, acute and arthritic pain by combining controlled local heat with TENS (Transcutaneous Electrical Nerve Stimulation). It is indicated for temporary relief of pain related to sore or aching muscles in the lower back, arms, legs, shoulder or foot caused by strain from exercise or routine daily activities.

How does the device work?
The KM360 uses combined heat and TENS to reduce pain perception through established physiological mechanisms:

• Low‑frequency electrical pulses travel through the skin to adjacent nerves to interrupt pain signals before they reach the central nervous system.
• Electrical stimulation can promote endogenous analgesic response, including increased endorphin release.
• Alternating muscle activation from stimulation can improve local blood circulation and facilitate relaxation.

Product function

• Three selectable treatment modes.
• Two temperature settings: low and high.
• Nine low‑frequency electrical stimulation patterns.
• Numeric intensity display (0–99) for reproducible settings.
• Adjustable timer displayed from 1 to 30 minutes.
• Electrode detachment detection: the screen indicates pad separation.
• Integrated rechargeable lithium‑ion battery (7.4V, 1200mAh).

Technical data (table)
Product name: Heating pain relief stimulator
Model: KM360
Power source: DC 7.4V, Approx. 1200mAh; Rechargeable lithium‑ion battery
Frequency: 1 to 108 Hz
Operating conditions: 0 ℃ to +40 ℃, 30 to 80% RH, 700 to 1060 hPa
Storage conditions: -10 ℃ to +50 ℃, 30 to 80% RH (non‑condensing)
Transportation conditions: -20 ℃ to +60 ℃, 10 to 95% RH

Technical specifications

• Model: KM360
• Therapy: Combined heat and TENS (Transcutaneous Electrical Nerve Stimulation)
• Treatment modes: 3 modes
• Temperature levels: 2 (low, high)
• Low frequency stimulation modes: 9 types
• Intensity range: 0–99 (numeric display)
• Timer range: 1–30 minutes (displayed)
• Electrode shedding detection: pad‑detach screen alert
• Battery: Built‑in 7.4V, 1200mAh rechargeable lithium‑ion battery
• Frequency range: 1–108 Hz
• Operating temperature: 0 ℃ to +40 ℃
• Storage temperature: -10 ℃ to +50 ℃
• Transportation temperature: -20 ℃ to +60 ℃
• Operating humidity: 30–80% RH
