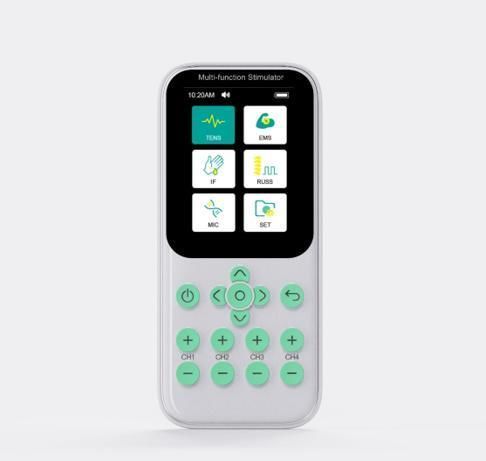

Electric stimulator KM201

hand-heldEMSIF

DESCRIPTION
The KM201 is a portable electrotherapy device for clinical and home use that delivers controlled electrical stimulation via skin electrodes. It includes five therapeutic modes (TENS, EMS, IFT, MIC, RUSS) to address pain management and muscle rehabilitation. Parameters and intensity are set from the front panel and adjusted to patient needs.

USES / BENEFITS

• Symptomatic pain relief for chronic, acute and post-operative pain.
• Promote local blood circulation and assist muscle re-education.
• Enhance muscle strength and support rehabilitation exercises.
• Relaxation of muscle spasm and prevention of disuse atrophy.
• Maintain or increase range of motion.

KEY FEATURES

• Five therapy modes: TENS, EMS, IFT (Interferential), MIC (Microcurrent), RUSS (Russian stimulation).
• 4 output channels for simultaneous multi-area treatment; 2-channel options for IFT/MIC/RUSS.
• 2.8-inch full-color TFT display and front-panel controls for parameter adjustment.
• Integrated rechargeable Li-ion battery (D.C. 7.4V 1200mAh) providing over 6 hours of use.
• Compact main unit: 150 × 73 × 20 mm, weight 300 g; pads size 50 × 50 mm.

PROGRAMS

• 14 TENS programs: pain-gate and endorphin-release based protocols for symptomatic relief.
• 21 EMS programs: muscle training, toning, bulk and rehabilitation modes including advanced muscle-mass and asynchronous stimulation.
• 6 IFT programs: 2- and 4-pole interferential options for chronic and joint pain relief.
• 3 MIC programs: low-intensity microcurrent for wound support and pain reduction.
• 8 RUSS programs: intermediate-frequency Russian current modes for deeper muscle penetration.

SPECIFICATIONS

• Product Name: Multifunctional stimulator
• Model: KM201
• Power Source: D.C. 7.4V 1200mAh Li-ion Battery
• Adapter: Input AC 100–240V 50/60Hz; Output DC 5V 1A
• Line Current Isolation: Type BF Applied Part
• Number of output channels: 4
• Dimensions (L×W×H): 150 mm × 73 mm × 20 mm
• Weight (main unit): 300 g
• Pad dimensions: 50 mm × 50 mm
• Housing material: ABS plastic
• Accessories: non-woven fabric pads, hydrogel, PVC wire
• Service life: main unit ~5 years; pads ~30 uses
• Operating environment: 10–40°C, 0–90% RH, 70–106 kPa
• Storage environment: -10–50°C, 0–90% RH, 70–106 kPa
