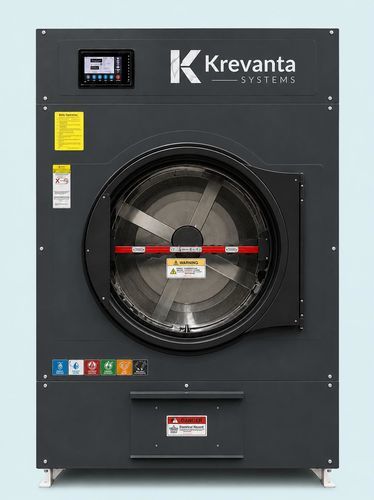

Front-loading clothes dryer KS-D100

electric

Product Description
The KS-D100 industrial tumble dryer is a high-capacity drying system engineered for large-scale commercial and industrial laundry operations. It features a heavy-duty frame, stainless-steel drum and a high-efficiency airflow system to deliver uniform drying while optimizing energy consumption and uptime.

Key Features

• Intelligent digital temperature control
• Automatic drying programs
• Reversible drum rotation
• Flexible electric or LPG heating options
• Designed for continuous 24/7 industrial operation with low maintenance requirements

Applications

• Hospitals and healthcare facilities
• Hotel laundries
• Commercial laundry plants
• Textile rental companies
• Garment manufacturers
• Industrial textile processing facilities

Technical specifications

• Model: KS-D100
• Nominal capacity: 100 kg
• Optimum dry load: 88–90 kg
• Drum diameter: 1,450 mm
• Drum depth: 1,190 mm
• Motor power: 2.2 kW
• Fan power: 1.5 × 2 kW
• Exhaust air volume: 8,000 m³/h
• Heating method: Electric / LPG
• Electric heating power: 54 kW
• Vent outlet diameter: 305 mm
• Noise level: ≤65 dB
• LPG consumption*: 4.1 kg/h
• Power supply: 380–415 V / 3 Phase / 50 Hz
• Machine dimensions (L × W × H): 1620 × 1800 × 2500 mm
• Machine volume: 7.5 m³
• Net weight: 1,080 kg
