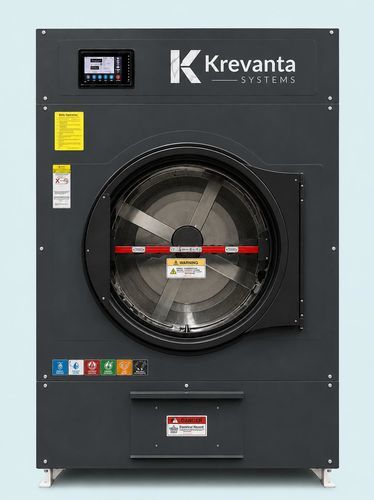

Front-loading clothes dryer KS-D70

electric

Overview
The KS-D70 industrial tumble dryer is engineered for continuous commercial and industrial laundry operations requiring a 70 kg nominal capacity. It features a heavy-duty frame, stainless steel drum and a high-efficiency airflow system to ensure uniform drying and shorten cycle times. Digital temperature control, automatic drying programs and reversible drum rotation provide process control and handling flexibility. Electric and LPG heating options are available to suit site utilities and operational preferences.

Applications

• Hospitals and healthcare facilities
• Hotels and hospitality laundries
• Commercial laundries and textile rental companies
• Garment manufacturers and industrial laundry plants

Standard Features

• Heavy-duty industrial frame
• Stainless steel drum (durable, corrosion-resistant)
• High-efficiency airflow system for uniform drying
• Digital temperature control and programmable drying cycles
• Reversible drum rotation for load leveling
• Electric or LPG (gas) heating options
• Designed for continuous industrial duty and high daily throughput

Technical Specifications

• Model: KS-D70
• Nominal Capacity: 70 kg
• Optimum Dry Load: 60–62 kg
• Drum Diameter: 1,200 mm
• Drum Depth: 1,080 mm
• Motor Power: 1.1 kW
• Fan Power: 1.5 kW
• Exhaust Air Volume: 6,000 m³/h
• Heating Method: Electric / LPG
• Electric Heating Power: 42 kW
• Vent Outlet Diameter: 280 mm
• Noise Level: ≤65 dB
• LPG Consumption: 3.1 kg/h
• Power Supply: 380–415 V / 3 Phase / 50 Hz
• Machine Dimensions (L × W × H): 1380 × 1700 × 2220 mm
• Machine Volume: 5.2 m³
• Net Weight: 680 kg
