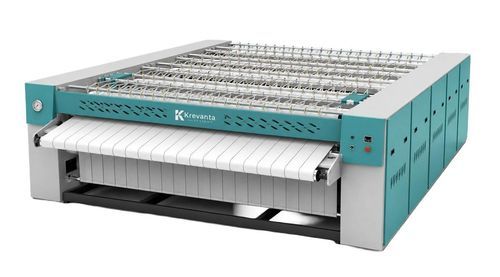

Healthcare facility ironer KS-FI

gaselectric

Overview
Single- and multi-roller flatwork ironers for sheets, tablecloths and other flat linen. Designed for industrial laundries, hotels, hospitals and rental services where consistent finishing, high throughput and integration into automated lines are required.

Key features

• Configurations from single-roller to five-roller machines to match throughput needs
• Heating options: electric, steam or gas (model dependent)
• Variable frequency/inverter speed control for adjustable ironing speed
• 304 stainless steel rollers (outer roller stainless steel) for uniform heat transfer
• Automatic conveyor belt tensioning and feeding safety protection
• Heavy‑duty welded frame and modular design for upgrades and line integration
• Maintenance features: main bearing lubrication, automatic lubrication (selected models) and emergency stop

Models overview
KS-FI2-3300 | 3300 mm | 3–20 m/min | Steam 200–300 kg/h | Connected load 64 kW
KS-FI3-3300 | 3300 mm | 3–25 m/min | Steam 300–450 kg/h | Connected load 96 kW
KS-FI4-3300 | 3300 mm | 3–35 m/min | Steam 400–550 kg/h | Connected load 130 kW
KS-FI5-3300 | 3300 mm | 3–55 m/min | Steam 500–600 kg/h | Connected load (example) 3.0 kW
KS-AFI3000E | 3000 mm | 0–12 m/min | — | Electric heating 72 kW
KS-AFI3000S | 3000 mm | 0–12 m/min | Steam ~160 kg/h | Connected load 1.5 kW

Model summaries
KS-FI2-3300

• Two-roller configuration for medium throughput
• Roller diameter: 800 mm; max ironing width: 3300 mm
• Ironing speed: 3–20 m/min; inverter and motor power examples: 1.5 kW
• Heating: electric/steam/gas options (electric 64 kW; steam 0.4–0.6 MPa; steam consumption 200–300 kg/h)
• Supply options: 220 / 380 / 415 V; dimensions H×D×W ≈ 1400×2500×4500 mm; net weight ≈ 2,600 kg

KS-FI3-3300

• Three-roller configuration for increased throughput
• Roller diameter: 800 mm; max ironing width: 3300 mm
• Ironing speed: 3–25 m/min; inverter power example 2.2 kW
• Heating: electric/steam/gas (electric 96 kW; steam 300–450 kg/h)
• Supply options: 220 / 380 / 415 V; dimensions H×D×W ≈ 1400×3450×4500 mm; net weight ≈ 4,000 kg

KS-FI4-3300

• Four-roller configuration for high-capacity finishing
• Roller diameter: 800 mm; max ironing width: 3300 mm
• Ironing speed: 3–35 m/min; inverter/motor power examples 2.2 kW
• Heating: electric/steam/gas (electric 130 kW; steam 400–550 kg/h)
• Supply options: 220 / 380 / 415 V; dimensions H×D×W ≈ 1400×4400×4500 mm; net weight ≈ 5,000 kg

KS-FI5-3300

• Five-roller flagship model for maximum throughput
• Roller diameter: 800 mm; max ironing width: 3300 mm
• Ironing speed: 3–55 m/min; higher inverter/motor power examples (3.0–3.7 kW)
• Heating: steam/gas options (steam 500–600 kg/h)
• Supply options: 220 / 380 / 415 V; dimensions H×D×W ≈ 1400×5350×4500 mm; net weight ≈ 6,300 kg

KS-AFI3000E

• Single-roller electric flatwork ironer for lower-throughput or specialised lines
• Max ironing width: 3000 mm; speed: 0–12 m/min; max ironing temperature up to 320 °C
• Electric heating power: 72 kW; motor power example 1.5 kW
• Dimensions H×D×W ≈ 1450×1360×4300 mm; machine weight ≈ 1,200 kg

KS-AFI3000S

• Single-roller steam flatwork ironer for precise steam finishing
• Max ironing width: 3000 mm; speed: 0–12 m/min
• Steam pressure: 0.4–0.6 MPa; steam consumption ~160 kg/h; motor power 1.5 kW
• Dimensions H×D×W ≈ 1450×2300×4300 mm; machine weight ≈ 2,100 kg

Technical specifications

• Roller material: 304 stainless steel; roller diameter typically 800 mm
• Max ironing width: 3300 mm (FI series), 3000 mm (AFI series)
• Speed ranges: 0–12 m/min (AFI) up to 3–55 m/min (KS-FI5-3300)
• Heating: electric, steam or gas depending on model; example heating powers 64–130 kW
• Steam inlet/gas inlet: DN40 where applicable
• Drive & control: variable frequency speed control, inverter on selected models
• Construction: heavy-duty welded frame, drawn steel transmission shaft
• Automation & safety: automatic conveyor tensioning, feeding protection, emergency stop, modular design for line integration
• Typical applications: hospital laundries, hotel laundries, commercial laundry plants, rental services, linen processing centres, industrial laundries
