Floor-mounted sheet folder KS-F series

with stacking system

Overview
Automatic feeders, folders and stackers that remove the manual handling at the end of the line, where most plants lose their throughput.
Main features

• Automatic feeding
• Cross and lateral folding
• Single or double stacking
• Integrates with KS-FI ironers

Comparison (at a glance)
Model | Capacity | Speed | Connected load
KS-FF3300 | 3,300 mm | 10–60 m/min | 3.1 kW
KS-FFA1 | 0–5 Pieces | Not applicable | 1 × 0.4 kW / 4P
KS-FFA2 | 0–5 Pieces | Not applicable | 2 × 0.4 kW / 4P
KS-FM3300 | 3300 mm | 10–50 m/min | 8.2 kW (3 motors)

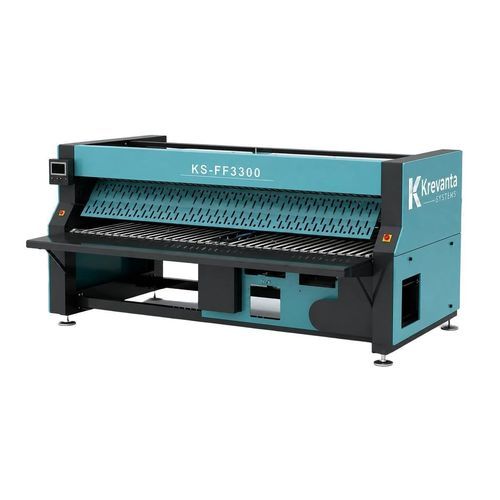

KS-FF3300 — Flatwork Folding Machine

• Model: KS-FF3300
• Working width: 3 300 mm
• Maximum linen size: 3300–4500 mm
• Number of folding channels: 4
• Maximum folding layers: 5
• Compatible linen: bed sheets, duvet covers, pillowcases, table linen, flatwork textiles
• Conveyor speed: 10–60 m/min
• Main motor: 1.5 kW / 4P
• Drive motors: 1 × 0.75 kW / 4P, 1 × 0.55 kW / 4P
• Main motor inverter: 1 × 1.5 kW
• Drive motor inverters: 2 × 0.8 kW
• Total power input: 3.1 kW
• Voltage: 3-phase AC 380 V / 50 Hz
• Conductor section: 4 × 2.5 mm²
• Air inlet: DN10
• Air pressure: 0.6 MPa
• Air consumption: 400 l/h
• Machine dimensions (L × W × H): 4500 × 2950 × 1800 mm
• Machine weight: 2 450 kg
• Key attributes: high-speed automatic folding, four independent folding channels, up to five folding layers, variable conveyor speed, PLC-controlled folding system, frequency-controlled drive motors, pneumatic folding mechanism, compatible with optional automatic stackers, continuous heavy-duty operation, industrial-grade construction, easy maintenance

KS-FFA1 — Automatic Single Stacker

• Model: KS-FFA1
• Machine type: Automatic single stacker
• Compatible machine: KS-FF3300 flatwork folding machine
• Stacking quantity: 0–5 pieces
• Main motor power: 1 × 0.4 kW / 4P
• Total machine input: 0.4 kW
• Voltage system: 3-phase AC 380 V / 50 Hz
• Conductor section: 4 × 2.5 mm²
• Air inlet: DN10
• Air pressure: 0.6 MPa
• Air consumption: 50 l/h
• Machine dimensions (L × W × H): 3450 × 850 × 900 mm
• Machine weight: 280 kg
• Key attributes: automatic linen stacking, single stacking station, PLC-controlled operation, pneumatic stacking mechanism, industrial-grade construction, compact single-stack configuration, continuous heavy-duty operation, reduced manual handling

KS-FFA2 — Automatic Double Stacker

• Model: KS-FFA2
• Machine type: Automatic double stacker
• Compatible machine: KS-FF3300 flatwork folding machine
• Stacking quantity: 0–5 pieces
• Main motor power: 2 × 0.4 kW / 4P
• Total machine input: 0.8 kW
• Voltage system: 3-phase AC 380 V / 50 Hz
• Conductor section: 4 × 2.5 mm²
• Air inlet: DN10
• Air pressure: 0.6 MPa
• Air consumption: 100 l/h
• Machine dimensions (L × W × H): 3450 × 1600 × 900 mm
• Machine weight: 530 kg
• Key attributes: automatic dual linen stacking and sorting, dual stacking stations, PLC-controlled operation, pneumatic stacking mechanism, industrial-grade construction, continuous heavy-duty operation, improved workflow efficiency

KS-FM3300 — Automatic Feeding Machine

• Model: KS-FM3300
• Machine type: Automatic feeding machine
• Maximum feeding width: 3300 mm
• Feeding speed: 10–50 m/min
• Feeding motor power: 0.37 kW
• Drive motor power: 0.75 kW
• Fan motor power: 7.1 kW
• Power supply: 380 V / 3 phase / 50 Hz
• Machine dimensions (L × W × H): 4450 × 1200 × 1550 mm
• Machine weight: 1 200 kg
• Key attributes: automatic linen spreading, vacuum-assisted linen feeding, perforated wool conveyor belt, variable feeding speed control, LED inspection lighting, efficient air suction system, heavy-duty industrial construction, smooth accurate linen alignment, easy integration with flatwork ironers

Applications

• Hospital laundries
• Hotel and resort laundries
• Commercial laundry plants
• Textile rental services
• Linen processing facilities
• Industrial laundry operations

Caractéristiques / spécifications techniques

• Series: KS-FF, KS-FFA and KS-FM
• Typical line voltage: 3-phase AC 380 V / 50 Hz
• Air inlet: DN10, typical air pressure 0.6 MPa
• Conductor section typically specified as 4 × 2.5 mm²
• Conveyor/feed speeds: KS-FF3300 up to 10–60 m/min; KS-FM3300 up to 10–50 m/min
• Power ratings: KS-FF3300 total 3.1 kW; KS-FM3300 total 8.2 kW (3 motors); stackers 0.4–0.8 kW total
• Machine sizes vary by model (examples provided in individual machine specs)
• Material handling: automated feeding, cross/lateral folding, single/double stacking, optional integration with flatwork ironers for end-to-end finishing
