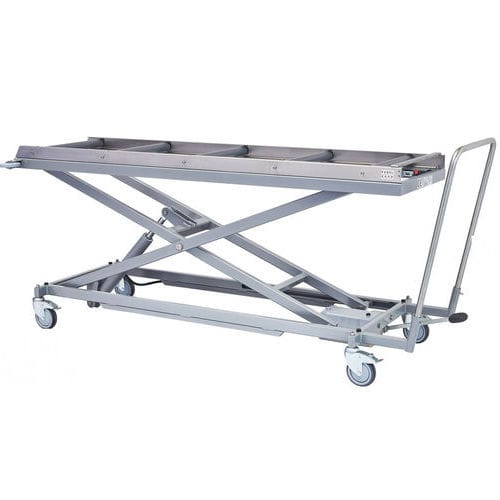

Coffin trolley HTW 50/250-R1-M-1650
transporthandlingstainless steel

coffin trolley
coffin trolley
coffin trolley
coffin trolley
coffin trolley
coffin trolley
coffin trolley
Add to favorites
Compare this product


transport, handling
stainless steel
Other characteristics


The lift and transport truck has a rugged, torsion-resistant frame structure and is made of powder coated steel (grey – RAL 9007). Additionally is has a smoothly running, integrated hydraulic unit for foot-actuated vertical adjustment for easy handling and 4 steerable solid rubber wheels, 2 of them lockable, 1 enabling locking as regards to the direction, d = 125 mm with special roller bearings, permanently lubricated and maintenance-free, which ensure an absolutely noiseless movement.. The low deadweight Permits straightforward shunting and operation of the lift and transport truck. A special valve ensures even lowering at various loads. A stainless steel roller track comprising 5 carrying rollers of corrosion-resistant material and plastic coating has been arranged on top of the truck. A holding device secures the Body tray or coffin plate lying on it. The slide handle of the lift and transport truck can be removed. An anticollision buffer is mounted to the front end. TECHNICAL DATA Dimensions lowest position W/D/H:2150 x 750 x 320 mm Dimensions highest position W/D/H:2150 x 750 x 1650 mm Carrying capacity:max. 250 kg Dead weight:approx. 100 kg
