Fetal monitor simulator KKG-5

maternal/neonatal carefor cardiotocographymonitoring

Product overview

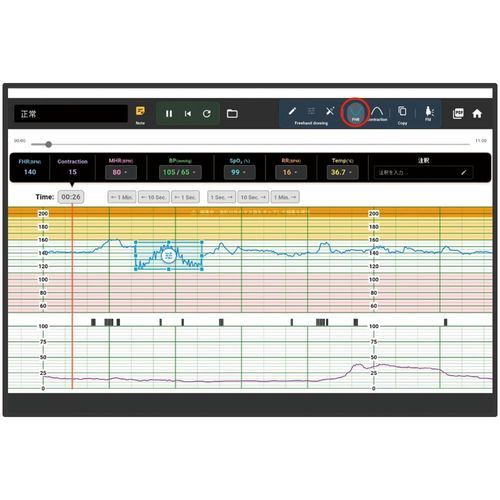

App-based educational CTG fetal monitoring simulator that reproduces clinical-like fetal heart rate and uterine contraction tracings for interpretation and assessment training. Designed for instructor (facilitator) and learner dual-screen use.

Model / delivery
12820-000: 1-year license
12820-500: 5-year license
12820-299: International package
12820-100: Tablet + router set (license sold separately)

Download

• Catalog (PDF)
• Quick manual (PDF)

Keywords

• fetal monitor
• bedside monitor
• vital sign monitor

Features

• Two-screen architecture (facilitator for control/editing and learner display) allowing real-time presentation of state changes at selected timings
• Reproduces a wide range of normal and abnormal CTG waveforms for fetal heart rate and uterine contractions
• Built-in scenarios with options to edit or create new scenarios to match training objectives

Training / evaluation items

• CTG interpretation
• Simulation material to be used alongside training models or standardized patients for waveform interpretation and assessment
• Scenario creation allows configurable waveforms, numeric values and display options

Cases / patterns

• Fetal heart rate patterns: 7 types
• Contraction patterns: 5 types
• Baseline variability: 4 levels (absent, reduced, moderate, increased)

Components

• Tablet ×2
• Router ×1
• AC adapter ×1

Notes

• This product is an application. Operation requires a tablet or smartphone meeting the system requirements. If you do not have a device, choose 12820-100 (tablet + router set).
• One license permits up to 2 accounts (up to 2 devices).
• Device roles: (1) operation/editing (facilitator) (2) display (learner)
• Both devices must be connected to the same Wi‑Fi network.
• The app can be used with a single device, but real-time modification of waveform shapes during playback is not available.
• Device changes after contract require administrative procedures.

Medical device classification
None

Specified maintenance medical device
Not applicable

JAN code
None

Last updated
2026-07-29

Technical specifications

• Product name: Educational fetal monitor モニトレCTG
• Model/part number: モニトレCTG (as listed)
• Delivery: App download (license-based)
• License options: 12820-000 (1 year), 12820-500 (5 years), 12820-299 (international package), 12820-100 (tablet + router set, license sold separately)
• Supported devices: Tablet / smartphone (devices must meet operating requirements)
• Simultaneous devices: Up to 2 devices per license (facilitator and learner display)
• Network requirements: Two devices must be connected to the same Wi‑Fi network
• Included cases/patterns: 7 fetal heart rate patterns, 5 contraction patterns, 4 levels of baseline variability
• Components (when selecting set): Tablet ×2, Router ×1, AC adapter ×1
• Medical device classification: None
• JAN code: None
• Last updated: 2026-07-29
