Vaccine refrigerator LAR-01

hospitallaboratoryfor clinical laboratories

Overview

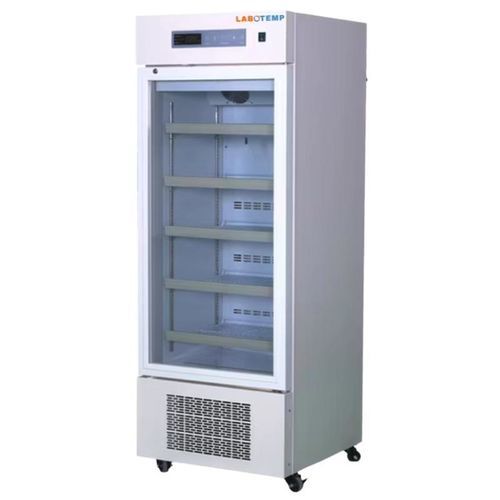

Labotemp LAR-01 laboratory refrigerator delivers controlled 8–20°C storage for sensitive samples, reagents, vaccines and pharmaceuticals. With 260 L capacity, 0.1°C display accuracy and real-time temperature and humidity monitoring, it is designed for stable operation in hospitals, research labs and diagnostic centers. Safety and usability features include audio-visual alarms, secure door lock and energy-efficient LED interior lighting. The 304 stainless-steel inner chamber supports hygiene and long-term reliability for daily professional use.

Key benefits

• High temperature precision: 0.1°C display accuracy for consistent sample protection.
• Continuous monitoring: simultaneous real-time temperature and humidity readout for traceability.
• Wide voltage tolerance: reliable operation across 187–242V for variable power environments.
• Clinical-grade interior: 304 stainless-steel chamber for easy cleaning and corrosion resistance.

Features

• Secure door lock to prevent unauthorized access.
• Accurate temperature control 8–20°C (±0.1°C).
• Digital display showing real-time temperature and humidity.
• Built-in high-brightness, energy-saving LED interior lighting.
• Audio-visual alarms (buzzer and flashing light) for deviations or faults.
• Durable construction with 304 stainless-steel inner chamber and robust outer body.
• Compact 260 L design with organized storage layout for clear reagent visibility.

Applications

• Storage of reagents, samples, vaccines and medicines in laboratories, hospitals and research facilities.
• Secure, temperature-controlled storage for biomedical, pharmaceutical and clinical use.
• Suitable for educational and industrial labs requiring reliable temperature regulation.

Specifications (table)
Model: LAR-01
Temperature Range: 8-20℃
Voltage Range: 187V~242V
Capacity: 260 L / 9.18 cu.ft
Power: 250W
Net Weight: 69 kg
Inner Dimensions: 515 × 510 × 1085 mm
Outer Dimensions: 595 × 605 × 1620 mm
Display: Real-time temperature and humidity display
Display accuracy: 0.1℃
Alarm Types: Sound buzzer, flashing light
Safety: Safety door locks on cabinet
Energy Saving: Built-in high-brightness, energy-saving lighting
Visibility: Clear reagent access/visibility in cabinet
Gross Weight: 85 kg
Package Size: 610 × 700 × 1600 mm

Technical specifications

• Model: LAR-01
• Temperature range: 8–20℃
• Display accuracy: 0.1℃
• Capacity: 260 L / 9.18 cu.ft
• Power consumption: 250W
• Voltage tolerance: 187V–242V
• Inner chamber: 304 stainless steel
• Alarms: audio-visual (buzzer and flashing light)
• Security: safety door locks
• Lighting: built-in high-brightness, energy-saving LED
• Net weight: 69 kg; Gross weight: 85 kg
• Inner dimensions (mm): 515 × 510 × 1085
• Outer dimensions (mm): 595 × 605 × 1620
• Package size (mm): 610 × 700 × 1600
