Vaccine refrigerator LAR-02

hospitallaboratoryfor clinical laboratories

Product Overview

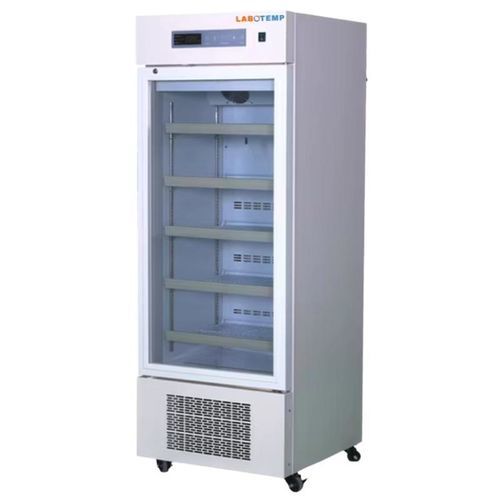

Labotemp Laboratory Refrigerator LAR-02 provides controlled 8–20°C storage for reagents, biological samples and pharmaceuticals. With a 360 L capacity, 0.1°C display accuracy and real-time monitoring, it is engineered for continuous use in clinical, research and pharmaceutical environments. The 304 stainless-steel interior supports hygiene and easy cleaning, while integrated safety and monitoring systems protect stored materials.

Key Benefits

• Improved thermal efficiency via optimized airflow and condenser routing to reduce compressor load and energy consumption
• Professional diagnostic system delivering early warnings for airflow, sensor or temperature anomalies
• Optimized energy management to lower operating costs while maintaining temperature stability
• True 0.1°C precision control using high-sensitivity sensors for reliable storage conditions

Features

• Energy-efficient operation with optimized refrigeration cycle
• Precise temperature control: 8–20°C with 0.1°C display accuracy
• Digital display showing real-time temperature and humidity
• Built-in LED lighting for clear interior visibility and low power draw
• Audio-visual alarms (buzzer and flashing light) for temperature deviations or system faults
• Safety door locks to prevent unauthorized access
• Durable construction with 304 stainless-steel inner chamber and robust outer body
• Wide voltage range support (187V–242V) for stable operation in varied installations
• Compact 360 L layout with organized shelving for reagent/sample access

Applications

• Suitable for laboratories, hospitals and research institutions to store reagents, samples, vaccines and medicines
• Provides precise temperature control and secure storage for biomedical, pharmaceutical and clinical workflows
• Appropriate for educational and industrial labs requiring reliable temperature-regulated storage

Technical specifications

• Model: LAR-02
• Temperature Range: 8–20°C
• Voltage Range: 187V–242V
• Capacity: 360 L / 12.71 cu.ft
• Power: 290 W
• Net Weight: 80 kg
• Gross Weight: 105 kg
• Inner Dimensions: 515 × 510 × 140 (mm)
• Outer Dimensions: 595 × 605 × 1940 (mm)
• Display: Real-time display of temperature and humidity
• Display accuracy: 0.1°C
• Alarm Types: Sound buzzer, light flashing
• Safety: Safety door locks on cabinet
• Energy Saving: Built-in high-brightness, energy-saving lighting
• Visibility: Clear reagent access/visibility in cabinet
• Package Size: 770 mm × 740 mm × 2200 mm
