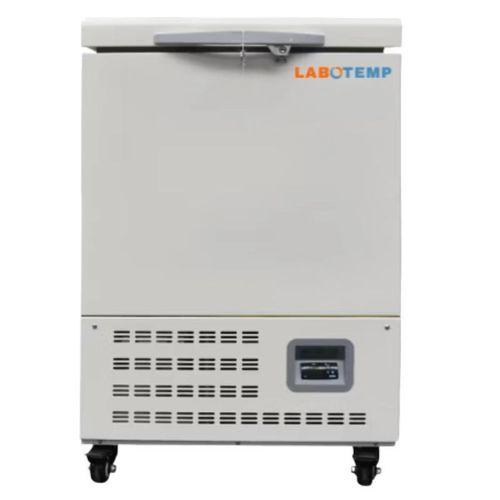

Vaccine freezer LDF-02

for hospitalslaboratoryfor sample storage

Product overview
Labotemp Laboratory and Deep Freezer LDF-02 is a 58L vertical freezer providing adjustable low-temperature storage from -10°C to -40°C. Engineered for laboratory, medical and research environments, it integrates electronic temperature control, a fluorine-free refrigerant and a 304 stainless steel inner liner for controlled, hygienic storage.

Key benefits

• Precise temperature range — Adjustable from -10°C to -40°C for a variety of samples and reagents.
• Space-efficient design — 58L vertical footprint suitable for benchside or under-counter installation.
• Continuous operation — Designed for uninterrupted use in clinical, pharmaceutical and research settings.
• Alarmed protection — Audible and visual alarms for over-temperature and fault conditions.

Features

• Fluorine-free environmental refrigerant.
• Slim under-counter compatible vertical design.
• Advanced electronic temperature controller for stable setpoint maintenance.
• Audible and visual alarm system for enhanced safety.
• 304 stainless steel inner liner and insulated outer body.
• Compact footprint for laboratory and medical use.

Applications

• Storage of vaccines, reagents, biological samples and other temperature-sensitive materials in laboratories, hospitals and research institutions requiring preservation down to -40°C.

Technical specifications

• Model: LDF-02
• Capacity: 58L
• Temperature range: -10 ~ -40°C, adjustable
• Voltage: 220V/50Hz
• Alarm: Audible and visual alarm
• Input power: 300W
• Power consumption: 3.4 kW·h/24h
• Protection grade: I/B
• Refrigerant: Fluorine-free environmental protection refrigerant
• Temperature control: Electronic temperature control
• Gross weight: 98 kg
• External dimensions: 670 × 765 × 1025 mm
• Internal dimensions: 410 × 410 × 385 mm
• Transport package: Plywood box
