Vaccine freezer LDF-07

hospitalfor blood plasmalaboratory

Overview

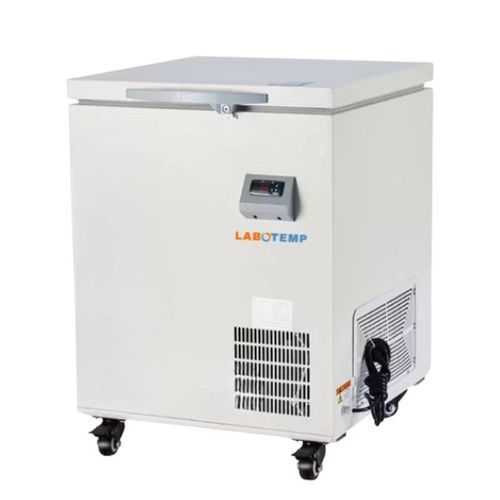

Labotemp LDF-07 is an ultra-low temperature laboratory freezer for controlled storage of biological materials, reagents and vaccines. It provides 120 L usable capacity with an adjustable temperature range from −10°C to −60°C. The interior is stainless steel 304 and the cabinet is powder-coated steel. Refrigeration is driven by a SECOP compressor in a single-compressor independent system, with Germany-brand EBM condenser fans and a PTC probe for precise regulation. The unit features 100 mm high-density insulation, electronic temperature control with digital display and audible and visual alarms to support secure sample management.

Key features

• Adjustable ultra-low temperature range: −10°C to −60°C
• 120 L stainless steel 304 chamber
• SECOP compressor with single-compressor independent refrigeration system
• Germany-brand EBM condenser fan for efficient airflow and low noise
• Electronic temperature control with digital display and PTC probe
• 100 mm high-density insulation
• Audible and visual alarm systems; four castors for mobility

Applications

• Storage of vaccines, enzymes, plasma and other biological samples in laboratories, hospitals and research institutes
• Long-term preservation requiring stable ultra-low temperatures

Technical specifications

• Model: LDF-07
• Capacity: 120 L
• Temperature range: −10°C to −60°C, adjustable
• Compressor: SECOP
• Voltage: 220V/50Hz, 110V/60Hz
• Alarm: Audible and visual alarm
• Input power: 340 W
• Power consumption: 4.4 kW·h / 24h
• Refrigerant: Fluorine‑free environmental refrigerant
• Temperature control: Electronic temperature control
• Protection grade: I/B
• Climate type: N
• Refrigeration system: Single compressor independent refrigeration system
• Temperature display: Digital data display
• Probe: PTC
• Condenser fans: Germany brand EBM
• Exterior material: Powder coated steel plate
• Interior material: Stainless steel 304
• Foaming layer thickness: 100 mm
• Balance hole: 1 (Diameter 18 mm)
• Castors: 4
• Net weight / Gross weight: 90 / 140 kg
• External dimensions: 810 × 765 × 885 mm
• Internal dimensions: 610 × 470 × 600 mm
• Package size: 900 × 835 × 1030 mm
