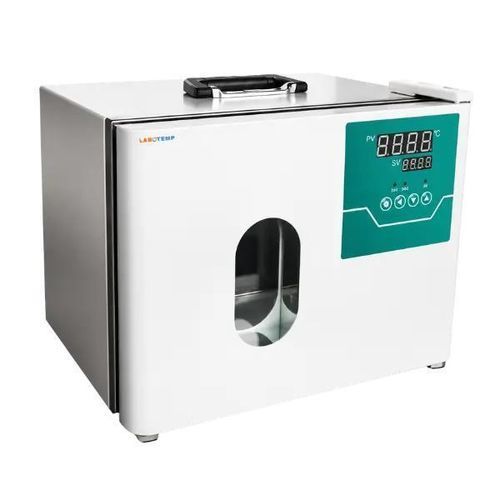

Natural convection laboratory incubator LPI-102

for scientific researchfor microbiologyfor the pharmaceutical industry

Product Overview
Labotemp Portable Laboratory Incubator LPI-102 is a compact benchtop incubator delivering stable, controlled heating for biological samples, culture media, reagents and laboratory tools in clinical, research and field environments. It offers a temperature range from RT+5 °C to 65 °C, with ±0.5 °C accuracy and ±1.5 °C uniformity. The 12.8 L mirror-finish stainless steel chamber ensures corrosion resistance and easy cleaning while natural convection heating provides gentle, even temperature distribution to protect sensitive samples.

Control & Operation
Designed for routine laboratory use, the LPI-102 features an intelligent PID controller with 0.1 °C resolution, touch-button operation, LED/LCD dual temperature display and a programmable timer (0–9999 min) with automatic stop. Safety and reliability are enhanced by over-temperature alarms, sensor fault detection, parameter memory and self-tuning. A large observation window with integrated LED lighting enables monitoring without disturbing internal conditions. Its lightweight portable design with top carrying handle and optional 12V vehicle power supply supports mobile labs, field diagnostics and remote clinical or veterinary work.

Key Features

• Natural convection heating for uniform chamber temperature distribution
• Mirror-finish stainless steel inner chamber with rounded corners for easy cleaning
• PID intelligent temperature controller with 0.1 °C resolution for precise regulation
• Audible and visual over-temperature alarm for safety
• Sensor fault detection and automatic protection functions
• Temperature deviation correction and overshoot self-tuning
• Internal parameter locking to prevent unauthorized changes
• Power-off memory restores previous operating parameters
• LCD dual-temperature display showing measured and set temperatures simultaneously
• Touch-button temperature setting with programmable timer (0–9999 min) and automatic stop
• Compact benchtop, portable design with optional vehicle/12V and 110V power supply

Applications

• Microbiological incubation and controlled-temperature culture growth up to 65 °C
• Drying, warming and conditioning of laboratory glassware, instruments and non-volatile samples
• Sample incubation for clinical, pharmaceutical and biotechnology laboratories
• Quality control and routine testing requiring stable, uniform low-temperature heating
• Academic, life-science and environmental research; mobile and field laboratory use

Technical specifications

• Model: LPI-102
• Cycle Mode: Natural Convection
• Temperature Range: RT +5 °C to 65 °C
• Temperature Resolution: 0.1 °C
• Temperature Accuracy: ±0.5 °C
• Temperature Uniformity: ±1.5 °C
• Inner Chamber Material: Mirror Stainless Steel
• Outer Shell: Cold-Rolled Steel with Electrostatic Spray Coating
• Insulation Material: Polyurethane
• Heater: Heating Wire
• Power Rating: 0.12 kW
• Temperature Control: PID Intelligent Control
• Temperature Setting: Touch Button
• Display: LCD (Measured Temperature: Upper Row, Set Temperature: Lower Row)
• Timer: 0–9999 min (with timing wait function)
• Operating Functions: Fixed temperature operation, timing function, automatic stop
• Additional Functions: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off memory
• Temperature Sensor: PT100
• Safety Protection: Over-temperature sound and light alarm
• Inner Chamber Dimensions (W × D × H): 230 × 200 × 280 mm
• External Dimensions (W × D × H): 310 × 276 × 378 mm
• Packing Dimensions (W × D × H): 350 × 312 × 457 mm
• Chamber Volume: 12.8 L
• Shelf Quantity: 2
• Load Capacity per Shelf: 5 kg
• Shelf Spacing: 35 mm
• Power Supply: AC220V, 50/60 Hz, 0.36 A
• Net / Gross Weight: 12 / 14 kg
• Optional Power Supply: Vehicular / 12V (DC) / 110V (AC)
