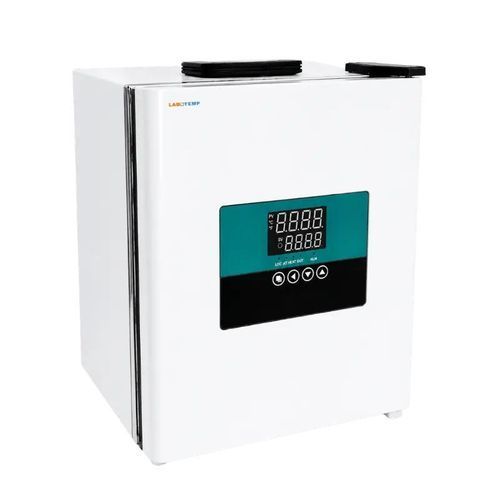

Natural convection laboratory incubator LPI-101

for microbiologyfor cell culturesfor general purposes

Overview
Labotemp Portable Laboratory Incubator LPI-101 is a compact 9.2 L incubator engineered for field testing, mobile laboratories, clinical diagnostics, microbiology, food testing and research. It offers a temperature range from RT+5°C to 65°C, ±0.5°C fluctuation and 0.1°C resolution for reliable incubation of bacterial cultures, biological samples and temperature-sensitive media.

Design & Operation
The LPI-101 uses four-sided natural convection heating and an intelligent PID controller to ensure uniform temperature distribution. The interior is mirror-finish stainless steel with rounded corners for hygiene and easy cleaning. Controls are via touch buttons with a dual LED temperature display, programmable timer, parameter memory and sensor-fault detection. A glass observation window with integrated LED lighting allows sample inspection without opening the chamber. The unit is lightweight and portable with an integrated carrying handle and optional 12 V vehicle power for mobile deployments.

Key Benefits

• Compact 9.2 L chamber optimized for bench and field workflows.
• High-accuracy PT100 sensing and PID control for stable incubation conditions.
• Four-sided natural convection heating for consistent temperature uniformity.
• Hygienic mirror-finish stainless steel interior and easy-to-clean design.
• Safety features including over-temperature protection, sensor-fault alarm and parameter lock.

Features

• Touch-button operation with user-friendly digital dual LED display.
• Four-sided natural convection heating for uniform distribution.
• Intelligent PID control with 0.1°C resolution and automatic self-tuning.
• Mirror-finish stainless steel chamber with rounded corners.
• Portable form factor with carrying handle; optional 12 V vehicle power.
• Glass viewing window with built-in LED illumination.
• Over-temperature alarm, audible/visual alerts and sensor-fault detection.
• Programmable timer (0–9999 min) with automatic stop.
• Parameter memory retains settings after power interruption.
• Polyurethane thermal insulation and high-temperature silicone door seal to reduce heat loss.

Applications

• Clinical and diagnostic laboratories: incubation of clinical specimens and microbiological cultures.
• Microbiology and cell culture: cultivation of bacteria, fungi and culture media.
• Food and environmental testing: microbial analysis, quality control and environmental monitoring.
• Research and education: temperature-sensitive experiments and sample preparation.
• Mobile and field laboratories: on-site diagnostics, veterinary testing and mobile workflows (optional 12 V power).

Technical specifications

• Chamber capacity: 9.2 L
• Temperature range: RT+5°C to 65°C
• Temperature resolution: 0.1°C
• Temperature fluctuation: ±0.5°C
• Temperature uniformity: ±1.5°C
• Heating system: Four-sided natural convection heating
• Temperature sensor: PT100 platinum resistance sensor
• Controller: Intelligent PID temperature controller
• Display: Dual LED temperature display
• Timer range: 0–9999 min
• Chamber material: Mirror-finish stainless steel
• Exterior material: Powder-coated cold-rolled steel
• Insulation: Polyurethane thermal insulation
• Operation: Touch button controls with parameter memory
• Observation window: Glass viewing window with built-in LED light
• Safety features: Over-temperature alarm, sensor fault alarm & parameter lock
• Power supply: AC 220V 50/60 Hz (optional 12 V vehicle / AC110V / AC220V)
• Power consumption: 80 W
• Load capacity: 5 kg per shelf
• Number of shelves: 2
• Internal dimensions (W × D × H): 230 × 200 × 200 mm
• Overall dimensions (W × D × H): 310 × 276 × 298 mm
• Net weight: 8 kg
• Gross weight: 10 kg
