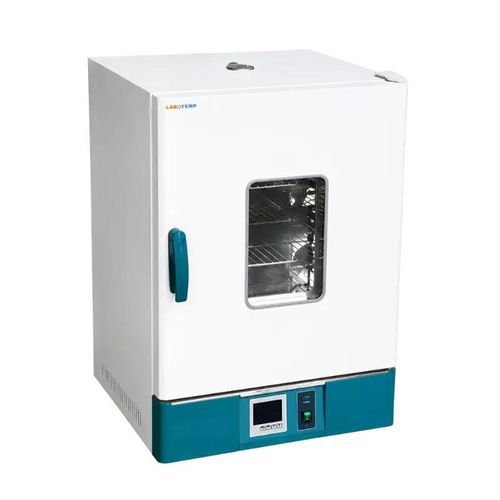

Natural convection laboratory incubator LBI-101

for microbiologyfor biochemistrybacteriological

Overview
The Labotemp Bacteriological Incubator LBI-101 is a precision constant-temperature incubator engineered for bacteriology, microbiology, biochemical and pharmaceutical laboratory workflows. It features a 125 L stainless steel chamber, a temperature range from RT+5°C to 80°C, temperature fluctuation ±0.5°C and an intelligent PID controller with PT100 sensor and LCD display to ensure repeatable incubation conditions and accurate temperature regulation.

Design and operation
Designed for reliable laboratory use, the LBI-101 uses natural convection for gentle, uniform heat distribution. The corrosion-resistant stainless steel inner chamber with rounded corners simplifies cleaning. A double-layer tempered glass observation window enables monitoring without opening the door. The unit includes adjustable shelves, programmable timer, over-temperature audible and visual alarms, and a powder-coated cold-rolled steel exterior for durability.

Key features

• Natural convection heating for uniform temperature distribution
• Intelligent PID controller with LCD display for precise control
• PT100 temperature sensor for accurate and stable monitoring
• Double-layer tempered glass observation window for sample monitoring
• Corrosion-resistant stainless steel chamber with rounded corners for easy cleaning
• Adjustable shelves to accommodate different sample sizes
• Over-temperature audible and visual alarm for safety
• Powder-coated cold-rolled steel exterior

Applications

• Bacterial culture: Stable incubation for routine bacterial cultivation and microbiological assays
• Microbiology research: Controlled-temperature incubation for microorganisms and laboratory cultures
• Biochemical studies: Suitable for enzyme assays and temperature-sensitive biochemical procedures
• Pharmaceutical testing: Supports microbiological quality-control and stability testing
• Food testing: Incubation of culture media for food microbiology and quality checks
• Clinical laboratories: Controlled incubation for diagnostic and clinical microbiology workflows
• Research and academic labs: Reliable temperature control for universities and research institutes

Technical specifications

• Model: LBI-101
• Brand: Labotemp
• Capacity: 125 L
• Inner chamber (W × D × H): 500 × 450 × 550 mm
• External dimensions (W × D × H): 636 × 680 × 915 mm
• Shipping dimensions (W × D × H): 745 × 755 × 1030 mm
• Net weight: 55 kg
• Gross weight: 75 kg
• Shelves: 2 adjustable shelves
• Temperature range: RT+5°C to 80°C
• Temperature fluctuation: ±0.5°C
• Temperature accuracy: ±1.0°C
• Temperature resolution: 0.1°C
• Heating method: Natural convection
• Controller: PID intelligent temperature controller
• Display: LCD
• Temperature sensor: PT100
• Timer range: 0–9999 minutes
• Inner chamber material: Stainless steel
• Outer body material: Powder-coated cold-rolled steel
• Observation window: Double-layer tempered glass
• Door seal: High-temperature resistant silicone gasket
• Power supply: AC110V/220V ±10%, 50/60Hz
• Power consumption: 600 W
• Safety: Over-temperature protection, temperature alarm, timing function
