Bacteriological laboratory incubator LBI-102

forced convectionfor microbiologyfor bacteriology

Product Overview

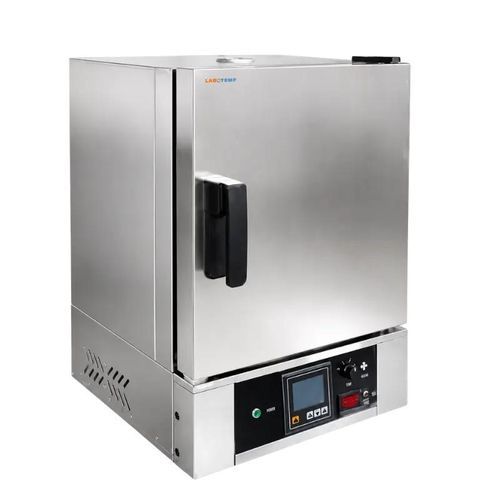

Labotemp Bacteriological Incubator LBI-102 is a forced-convection laboratory incubator engineered to deliver precise, uniform temperature control for microbiology, clinical diagnostics, pharmaceutical quality control and biomedical research. The 65 L chamber supports routine and regulated workflows within a range of RT+5°C to 120°C, with 0.1°C resolution, ±0.5°C fluctuation and ±1.0°C uniformity.

Construction and Operation
The unit combines a mirror-finish stainless-steel inner chamber with an embossed SUS304 stainless-steel exterior for corrosion resistance and easy decontamination. Temperature is measured by a PT100 sensor and managed by a dual-stage intelligent PID controller. Vertical dual-air-duct forced convection, a stainless-steel heating tube and a 4-level / 3-speed adjustable circulation fan ensure rapid heat recovery and even distribution. Operation and monitoring use an LCD controller with programmable 0–9999 minute timer, fixed-value and timed modes, independent over-temperature protection and audible alarm for sample safety.

Key Features

• Vertical dual-air-duct forced convection for fast heat recovery and uniform chamber temperature
• Operating range RT+5°C to 120°C; temperature resolution 0.1°C, fluctuation ±0.5°C, uniformity ±1.0°C
• Dual-stage intelligent PID temperature control for accurate regulation
• High-precision PT100 platinum resistance temperature sensor
• 4-level fan adjustment with 3-speed adjustable circulation fan for airflow control
• Programmable 0–9999 minute timer with automatic stop after timed operation
• Mirror-finish stainless-steel inner chamber and SUS304 embossed stainless-steel exterior
• Stainless-steel heating tube element and Ø35 mm test/vent port
• Independent over-temperature protection and audible over-temperature alarm

Applications

• Incubation of bacterial cultures and routine microbiological testing in clinical and research labs
• Microorganism cultivation and growth studies requiring uniform temperature
• Preparation and incubation of culture media for pharmaceutical and diagnostic workflows
• Pharmaceutical quality control and microbiological QC procedures
• Biotechnology, biomedical research and academic laboratories
• Food, water and environmental microbiology testing where controlled incubation is required

Specifications

• Model: LBI-102
• Capacity: 65 L
• Air circulation: Forced convection (vertical dual-air-duct)
• Control system: Dual-stage intelligent PID controller
• Temperature sensor: PT100 platinum resistance sensor
• Temperature range: RT +5°C to 120°C
• Temperature resolution / display: 0.1°C
• Temperature fluctuation: ±0.5°C
• Temperature uniformity: ±1.0°C
• Timer range: 0–9999 minutes (programmable)
• Operating modes: Fixed value / Timed operation / Automatic stop
• Fan system: 4-level, 3-speed adjustable circulation fan
• Heating element: Stainless-steel heating tube
• Vent/test port: Ø35 mm
• Rated power: 0.7 kW; Power supply: AC 220 V, 50/60 Hz; Current: 7.2 A
• Inner chamber material: Mirror-finish stainless steel; Exterior: SUS304 embossed stainless steel
• Chamber dimensions (W × D × H): 400 × 360 × 450 mm
• Overall dimensions (W × D × H): 550 × 550 × 840 mm
• Packing dimensions (W × D × H): 635 × 625 × 995 mm
• Shelf load capacity: 15 kg; Net weight: 44 kg; Gross weight: 49 kg
