Automatic nucleic acid analyzer LPC-02

point-of-careveterinaryfor clinical diagnostic

Overview

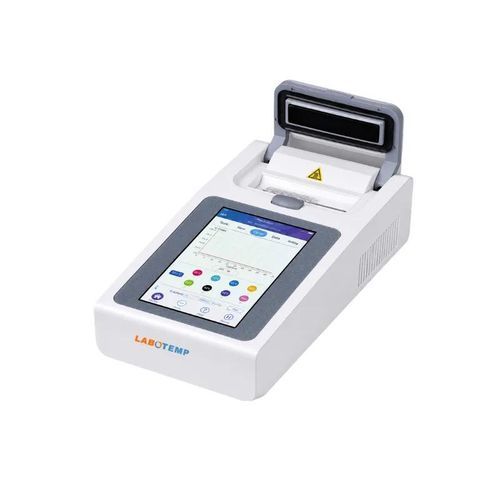

The Labotemp Isothermal Fluorescence Analyzer LPC-02 is a compact, portable instrument for rapid nucleic acid detection using isothermal amplification with real‑time fluorescence monitoring. The system features an 8‑well reaction block compatible with 0.2 mL flat/dome tubes and 8×0.2 mL strips, supporting sample volumes of 20–100 μL. Temperature control ranges from ambient to 99°C with ±0.1°C accuracy and ±0.15°C uniformity. A single fluorescence detection channel (FAM/SYBR Green I) with LED excitation, an integrated 7‑inch touchscreen and automatic positive/negative interpretation streamline molecular testing workflows in clinical and field settings.

Functional description
The LPC-02 is designed for molecular diagnostics, research and field use. Embedded software, PC software and a mobile Android app allow experiment setup, real‑time monitoring, data recording and result review. Optional rechargeable battery and 40 W power consumption support portable operation. Side optical detection enables reliable measurements with low reaction volumes (from 20 μL). Automatic result interpretation and onboard data logging reduce operator steps and simplify traceability.

Key advantages

• Precise temperature control: ±0.1°C accuracy and ±0.15°C uniformity across wells.
• Real‑time fluorescence detection: single‑channel FAM/SYBR Green I with LED excitation and automatic positive/negative calls.
• Portable workflow: compact, lightweight design with optional rechargeable battery for lab and point‑of‑care use.

Features

• 8‑well detection block (1 × 8 arrangement).
• Support for 0.2 mL single tubes and 8×0.2 mL strip tubes; sample volume 20–100 μL (recommended 25–30 μL).
• Standalone operation via 7‑inch color touchscreen; embedded software, PC and Android mobile app for remote monitoring.
• Automatic amplification plot display and instrument interpretation to reduce manual analysis.
• Real‑time signal monitoring, LED excitation and side optical detection for reliable low‑volume measurements.
• High‑precision temperature control with heated lid.
• Built‑in data recording and statistical functions for traceability.
• Optional rechargeable battery for field deployment.

Applications

• Clinical diagnostics
  Rapid nucleic acid detection for infectious disease identification in hospital and clinical laboratories.
• Molecular biology research
  Support for isothermal DNA/RNA amplification assays in life‑science R&D.
• Point‑of‑care and field testing
  Portable operation for mobile labs and remote healthcare settings.
• Food safety & environmental monitoring
  Detection of pathogens and microbial contamination in food and environmental samples.
• Veterinary diagnostics
  Molecular detection of animal pathogens for diagnosis and surveillance.

Technical specifications

• Product type: Isothermal fluorescence analyzer
• Manufacturer: Labotemp
• Sample capacity: 8 wells (1 × 8)
• Tube compatibility: 0.2 mL flat/dome single tube & 8 × 0.2 mL strip
• Sample volume: 20–100 μL (Recommended: 25–30 μL)
• Detection channel: Single channel (FAM / SYBR Green I)
• Excitation/Detection wavelengths: F1 excitation 470/30 nm; detection 525/20 nm
• Excitation source: LED
• Display: 7‑inch touchscreen
• Software: Embedded software, PC software, Android mobile app
• Temperature range: Ambient to 99°C
• Temperature deviation: ±0.1°C; uniformity: ±0.15°C; control accuracy: 0.1°C
• Max heating/cooling speed: 2°C/s
• Heated lid: Yes
• Input power: 100–240 V AC, 50/60 Hz; rated output: 12 V, 4 A; consumption: 40 W
• Net weight: 2.5 kg; gross weight: 6 kg
• Dimensions (W × D × H): 460 × 400 × 280 mm
• Optional accessory: Rechargeable battery
