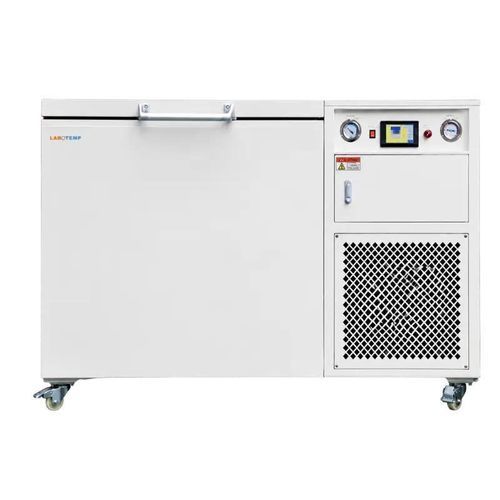

Vaccine freezer CRF-202

for clinical laboratorieslaboratoryfor sample storage

Product description
Labotemp Cryogenic Freezer CRF-202 is an upright cryogenic freezer providing stable ultra-low temperature storage from -100°C to -150°C with 118 L usable capacity. Engineered for laboratories, hospitals, biobanks, pharmaceutical production and research institutions, the unit features 150 mm insulation and a high-efficiency compressor to ensure temperature uniformity and reduced energy consumption for continuous operation.

Operational Safety & Controls
Digital temperature display with adjustable high/low temperature alarms, visual and audible alerts, probe-failure monitoring, secure door lock, manual defrost and heavy-duty castors for safe handling and transport.

Key Features

• 150 mm insulation
• Operating range: -100°C to -150°C
• Designed for ambient temperatures up to 30°C
• Visual and audible alarms for abnormal conditions
• Adjustable high/low temperature alarm
• Integrated probe failure alarm
• Digital temperature display
• 304 stainless steel interior
• Galvanized steel exterior with white powder coating
• Secure door lock
• Manual defrost system
• Mounted on heavy-duty castors

Applications

• Pharmaceutical Research & Development
  Ultra-low temperature storage of drug compounds, vaccines, enzymes and research materials
• Clinical & Hospital Laboratories
  Preservation of clinical specimens and reference samples for diagnostic and research purposes
• Cell & Molecular Biology Research
  Storage of cell cultures, DNA, RNA, proteins and other biomolecular samples
• Academic & Research Institutions
  Long-term preservation for universities and research centers conducting biological and biomedical studies
• Quality Control & Reference Sample Storage
  Stable conditions for retained samples and quality control materials in regulated environments
• Biotechnology Laboratories
  Secure storage of valuable biological materials and experimental specimens
• Industrial & Material Research
  Preservation of temperature-sensitive materials and specialty samples for advanced material testing

Technical Specifications

• Capacity: 118 L
• Temperature Range: -100°C to -150°C
• Power Supply: 380V 50hz
• Rated Power: 2500 W
• Power Consumption (24 h): 30 kWh/24 h
• Maximum Ambient Temperature: 30°C (86°F)
• Noise Level: 60 dB(A)
• Display: Digital Display
• Visual & Audible Alarm: Yes
• High/Low Temperature Alarm: Yes (Adjustable)
• Probe Failure Alarm: Yes
• Defrost System: Manual
• Lock: Yes
• Castors: Yes
• Interior Lighting: No
• External Dimensions (W × D × H): 1270 × 795 × 990 mm
• Internal Dimensions (W × D × H): 540 × 400 × 560 mm
• Insulation Thickness: 150 mm (6.91 in)
• Inner Liner Material: 304 Stainless Steel
• Exterior Material: Galvanized Steel with Powder Coating
• Refrigerant: Mixed Refrigerant (R290/R600A)
• Compressor: 1 × ANTAI
• Color: White
• Net Weight: 126 kg
• Gross Weight: 165 kg
• Package Size: 1350 × 875 × 1140 mm
