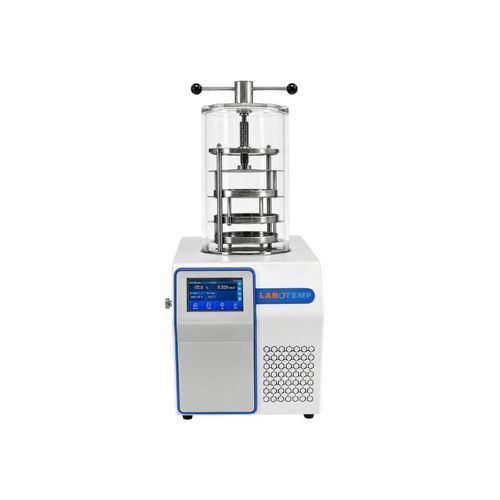

Freeze dryer for the pharmaceutical industry LFD-202

for the food industrybiologicalbiomedical

Product Description
Labotemp LFD-202 is a laboratory vacuum freeze dryer designed for precise lyophilization of temperature-sensitive samples. The unit integrates a manual vial capping system to vacuum-seal vials after drying and features a 0.08 m² drying area, −60°C cold trap and 2 Pa ultimate vacuum to ensure efficient moisture removal while preserving sample structure and activity. A transparent PE drying chamber enables continuous observation of samples during processing.

Overview of Operation
The LFD-202 is built for routine laboratory use with a user-friendly 7-inch touchscreen HMI for program setting and real-time display of vacuum, temperature and drying curves. The Secop refrigeration module provides stable low-temperature performance with energy efficiency. Operational safeguards include delayed vacuum pump start, automatic parameter storage, vacuum alarms, an inert gas filling port, one-touch defrost/auxiliary heating and corrosion-resistant components. USB export supports process documentation and traceability.

Key Benefits

• Effective freeze drying with −60°C cold trap, 2 Pa ultimate vacuum and 0.08 m² drying area.
• Integrated manual vial capping for vacuum sealing to protect sample integrity after drying.
• Intuitive control via 7-inch touchscreen HMI with real-time monitoring and USB data export for documentation.

Features

• 7-inch touchscreen (LCD) HMI for intuitive control.
• 0.08 m² freeze-drying area and −60°C cold trap for efficient moisture capture.
• Manual vial capping mechanism for vacuum sealing post-drying.
• Secop compressor with hybrid refrigeration technology for stable low-temperature operation.
• Real-time monitoring of vacuum, cold trap/material temperature and freeze-drying curves.
• Multi-curve storage and USB data export for traceability.
• Delayed vacuum pump start for pump protection.
• Vacuum alarms with automatic protection.
• Inert gas filling port.
• One-click auxiliary heating/defrost for maintenance and recovery.
• Stainless steel vacuum line with KF25 quick-connect clamp (corrosion-resistant).
• Low-noise mechanical design with axial cooling fan and dual-ball bearings.
• Automated maintenance reminders for pump replacement and system upkeep.

Applications

• Pharmaceutical research: vaccines, injectables, APIs and other temperature-sensitive formulations.
• Biotechnology: preservation of proteins, enzymes, cultures and sensitive biomaterials.
• Clinical laboratories: lyophilization of diagnostic reagents and biological specimens.
• Food & nutraceutical research: drying of extracts, probiotics and heat-sensitive ingredients.
• Microbiology: preservation and stabilization of microbial cultures.
• Molecular biology: lyophilization of reagents, enzymes and nucleic-acid-related samples.
• R&D: laboratory-scale formulation development, process optimization and stability studies.
• Sample preservation: long-term storage of heat-sensitive materials.
• Biopharmaceutical development: preparation and evaluation of lyophilized formulations prior to scale-up.

Standard Accessories

• Vacuum pump
• 2 × KF25 clamps
• 1 × KF vacuum hose

Technical Specifications

• Freeze-drying area: 0.08 m²
• Cold trap temperature: −60°C
• Water capture capacity: 4 kg/batch
• Power consumption: 680 W
• Power supply: AC 220 V, 50 Hz
• Applicable environment: ambient temperature ≤30°C
• Standard vacuum degree: ≤5 Pa (no load)
• Ultimate vacuum degree: 2 Pa
• Freeze-drying type: Manual capping
• Drying capacity – Ø12 mm vials: 560
• Drying capacity – Ø16 mm vials: 285
• Drying capacity – Ø22 mm vials: 165
• Material tray: 180 mm, 3 layers
• Control interface: 7-inch LCD touchscreen HMI
• Monitoring & recording: real-time vacuum, cold trap/material temperature and freeze-drying curve monitoring
• Data management: multi-curve storage and USB data export
• Vacuum pump protection: delayed vacuum pump start
• Vacuum alarm: automatic alarm and protection
• Inert gas filling: available
• Defrost / auxiliary heating: one-click auxiliary heating/defrost
• Vacuum chamber: stainless steel vacuum line with KF25 quick-connect clamp
• Capping system: manual vial capping
• Refrigeration system: Secop compressor with hybrid refrigeration technology
• Maintenance: automated reminders for pump replacement and system maintenance
• Drying chamber height: 460 mm
• External dimensions (W × D × H): 600 × 440 × 480 mm
• Main unit weight: 50 kg
• Shipping dimensions – main machine: 680 × 640 × 930 mm
• G.W. (kg): 94/21
