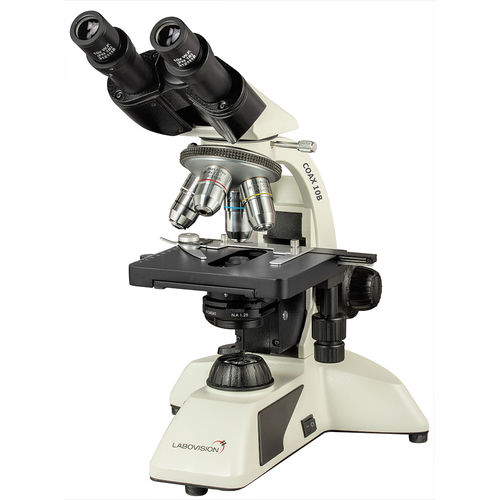

Optical microscope COAX 10B

laboratorytrinocularplan

Infinity Optical System (IOS) C shaped, corrosion resistant, Anti mould treated stand with modular base 30° Inclined Siedentopf Binocular / Trinocular tubes, 360° rotatable with IPD 48-75 mm and dioptric adjustment OPTICAL SYSTEM - Infinity Optical System (IOS) STAND - C shaped, corrosion resistant, Anti mould treated stand with modular base VIEWING BODIES - 30° Inclined Siedentopf Binocular / Trinocular tubes, 360° rotatable with IPD 48-75 mm and dioptric adjustment EYEPIECES - WF10X/18mm with Eye-guards. Anti Mould Treated. Optional WF10x/20mm NOSEPIECE - Quadruple, Revolving nosepiece, with rubber grip, Optional Quintuple nosepiece OBJECTIVES IP Plan IPP Phase Plan Infinity Objectives, Full Plan / Phase Plan Achromats, Anti Mould Treated 4x/NA 0.10, 10x/NA 0.25, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil 10x/NA 0.25, 20x/ NA 0.40, 40x/NA 0.65 SL, 100x/NA 1.25 SL, Oil Optional 20x/ NA 0.40 SL, 60x/NA 0.85 SL MECHANICAL STAGE - Double Plate 142mm×133mm. X-Y travel 76mm×50mm, spring clip Double Slide holder CONDENSER - Movable ABBE condenser, with aspheric lens NA 1.25 & daylight blue filter & Iris diaphragm FOCUSING SYSTEM - Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Tension adjustment ring and Auto Focus provided ILLUMINATION - Illumination super bright white LED lamp with intensity control regulator. Universal Power Supply 110 V to 220 V, AC 50-60 Hertz. Optional 6V 20W Halogen Lamp.
