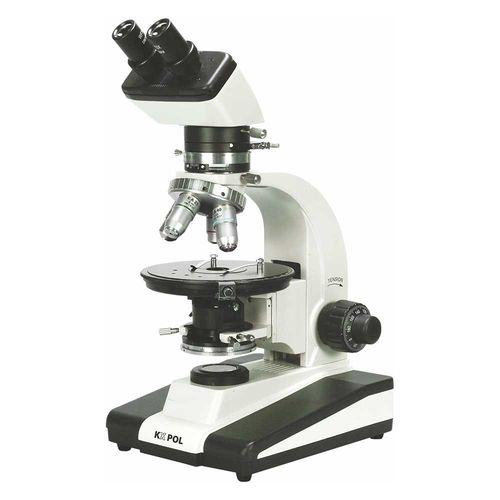

Optical microscope KX POL

laboratorybinocularachromatic

C shaped, corrosion resistant, Anti mould treated stand with modular base 45° Inclined Binocular / Trinocular tubes, 360° rotatable with IPD 55-75 mm and dioptric adjustment Wide Field eyepiece WF 10x/18mm paired, Micrometer Eyepiece WF 10x/18mm (10mm/100 parts X-Y) ,WF 10x/18mm with grid & WF 10x/18mm with crosshair. STAND - C shaped, corrosion resistant, Anti mould treated stand with modular base VIEWING BODIES - 45° Inclined Binocular / Trinocular tubes, 360° rotatable with IPD 55-75 mm and dioptric adjustment EYEPIECES - Wide Field eyepiece WF 10x/18mm paired, Micrometer Eyepiece WF 10x/18mm (10mm/100 parts X-Y) ,WF 10x/18mm with grid & WF 10x/18mm with crosshair. NOSEPIECE - Quadruple , Revolving nosepiece, Centerable OBJECTIVES - SF Series Achromatic POL “Strain Free” 4x/NA 0.10, 10x/NA 0.25, 25x/ NA 0.40 SL, 40x/NA 0.65 SL, 63x/NA 0.85 SL, Optional 100x/NA 1.25 SL, Oil. STAGE - 160 mm dia circular with graduations in 1° increments and vernier reading to 6′. Stage clips are provided to hold the specimen slide. Attachable Mechanical Stage POLARIZING KIT - Rotatable& Graduated Polarizer- Analyzer assembly with Bertrand lens, Compensator 147nm and 550nm, gypsum (λ), mica(1/4λ) sample, quartz wedge CONDENSER - Movable ABBE condenser, with aspheric lens NA 1.30 & mounted FOCUSING SYSTEM - Ergonomic low position co-axial coarse and fine focusing system on ball bearing guideways. Tension adjustment ring and Auto Focus provided ILLUMINATION - 6V 30W Halogen Lamp, with Universal Power Supply 100 V to 240 V, AC 50-60 Hertz, CE Compliant. Mounted Daylight Blue Filter
