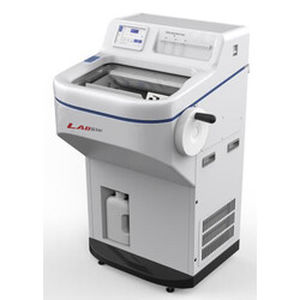

Rotary microtome cryostat HTP11-100A

automaticfor histologyfor research

Product Details
Cryostat is a machine that enables the operator to section the tissue at low temperature. A high-throughput cryostat produces quality sections that helps provide an accurate diagnosis.

• Used in Tissue biopsy, Slice tissue slide, Magnetic Resonance Imaging (MRI), Pathological diagnosis, Analysis and Research in Hospital and Medical colleges.
• Also known as Ultrafine "deli-slicer"

Key Features

• Fully automatic trimming and sectioning along with manual trimming and sectioning available. Has 5 points refrigeration namely freezing head, freezing knife, freezing chamber, double freezing tables. Machine is assembled with an anti-curl plate, so sectioning is smooth and reliable. Heat absorption device for tissues it will be mated with freezing table, meanwhile the upper and the lower will be refrigerated at same time so that freezing speed is fast. Speed of sample feed and withdrawal there are quick and slow gears.

Specifications
Refrigerating range to set: room temperature ~ -60 ℃
Section thickness: 0 ~100 μm
Minimum division value: 0.5 μm
Trimming range: 0 ~ 600 μm
Specimen horizontal shifting distance: 25 mm
Specimen vertical shifting distance: 60 mm
Sectioning angle adjustable: 10°
Freezing positions: 10 ~15
Temperature reachable freezing head: -50℃
Temperature reachable freezing table: -45 ℃
Temperature reachable freezing knife: -35 ℃
Temperature reachable freezing chamber: -25 ℃ ± 5
Voltage: 220 V
Power: 800 VA
Weight: 120 kg

Caractéristiques / spécifications techniques

• Fully automatic and manual trimming/sectioning
• 5-point refrigeration: freezing head, knife, chamber, double tables
• Anti-curl plate for smooth sectioning
• Heat absorption device for fast freezing
• Quick and slow gears for sample feed/withdrawal
• Refrigerating range: room temp to -60°C
• Section thickness: 0-100 μm
• Minimum division: 0.5 μm
• Trimming range: 0-600 μm
• Horizontal shift: 25 mm
• Vertical shift: 60 mm
• Sectioning angle: 10°
• Freezing positions: 10-15
• Freezing head: -50°C
• Freezing table: -45°C
• Freezing knife: -35°C
• Freezing chamber: -25°C ±5
• Voltage: 220 V
• Power: 800 VA
• Weight: 120 kg
