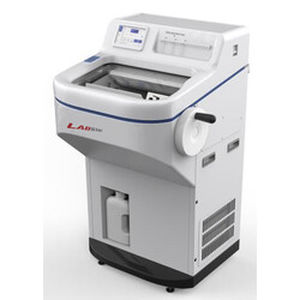

Semi-automatic microtome cryostat HTP11-45S

for histologyfor researchlaboratory

Product Overview
Cryostat is a machine that enables the operator to section the tissue at low temperature. A high-throughput cryostat produces quality sections that helps provide an accurate diagnosis.

• Used in: Tissue biopsy, Slice tissue slide, Magnetic Resonance Imaging (MRI), Pathological diagnosis, Analysis and Research in Hospital and Medical colleges.
• Also known as: Ultrafine "deli-slicer"

Key Features

• Defrost automatically / manually, each defrost time is 15 minutes by default, or the box temperature rises to -5°C during the defrosting process. UV sterilization, Semi-conductor refrigerant, Slice number and thickness calculation.
• 2 movement speeds of specimen clamp. Light and smooth handwheel with locking device on it. Specimen clamp enables to adjust triaxially with a block in the centre to go back.
• High precision guide rails made in Germany make transmission smooth, durable and able to cut hard sample.

Specifications
Security type: l category, B type
Voltage frequency: AC 220 V, 50 Hz (± 10 %) or AC 110 V, 60 Hz (± 10 %)
Input power: 650 VA
Range of temperature setting: -35 ℃ to -10 ℃
Defrost: Manual / Auto
Refrigerating capacity: 690 W
Refrigerate: R 404a, 300 g ± 5 g
Minimum temperature: -45 ℃
Number of specimen holder freezing points: 20
Number of semi-conductor freezing points: (switchable) 2
Setting range of section thickness: 0 um - 100 um
Specimen’s horizontal stroke: 25 mm
Specimen’s vertical stroke: 60 mm
Specimen’s max size: 55x55 mm
Specimen clamp’s max adjustable angle: 12 °
Specimen fast moving speed: 0.7 mm/s
Dimensional W x T x H: 780 (650 without handwheel) x 700 x 1152 mm
Net weight: 145 kgs

Technical Characteristics / Specifications

• Defrost automatically / manually
• UV sterilization
• Semi-conductor refrigerant
• Slice number and thickness calculation
• 2 movement speeds of specimen clamp
• Handwheel with locking device
• Triaxial adjustment of specimen clamp
• High precision German guide rails
• Voltage: AC 220 V, 50 Hz or AC 110 V, 60 Hz
• Input power: 650 VA
• Temperature range: -35 ℃ to -10 ℃
• Refrigerating capacity: 690 W
• Refrigerant: R 404a, 300 g ± 5 g
• Minimum temperature: -45 ℃
• Section thickness: 0 um - 100 um
• Specimen size: up to 55x55 mm
• Net weight: 145 kgs
