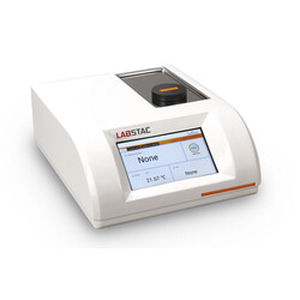

Digital refractometer REF11-050

for the food industrylaboratoryfor the pharmaceutical industry

Product Details
Labstac Refractometer is equipped with high-performance CCD light-sensitive part, it can automatically measure the refractive index (nD) of transparent, translucent, dark, viscous and other types liquid sample, also can measure sugar degree (Brix) of sugar solution. It’s accurate, reliable, fast, easy operation.

• Used in: Mostly used in scientific research institute, petroleum, oil, pharmaceutical, paints, food, daily chemical, sugar and geological prospecting industries.
• Also known as: Refractometer

Key Features

• Peltier accurate temperature control system is built-in, accuracy up to 0.1°C. High-resolution CCD detector offers automatic measurement, avoiding personal errors, having higher accuracy; transparent, translucent liquids or ropiness liquids samples are all available. High brightness LED light source with service life more than 100000 hours. 7-inch colour touch screen with Android system and 4GB RAM let methods and data expanding excellent.

Specifications
Refractive index measuring range (nD): 1.3000-1.7000
Measured value error (nD): ±0.0002
Measurement resolution (nD): 0.0001
Scope of sugar solution mass fraction (Brix): 0-100%
Measured value error (Brix): ±0.1%
Measurement resolution (Brix): 0.10%
Temperature control mode: Peltier
Scope of temperature measuring: 0-100°C
Temperature control range: 10-50 °C
Temperature control accuracy: ±0.1 °C
Interface: RS232/USB/SD card/U disk/Internet
Data storage capacity: 4GB
Display modes: 7 inches, TFT touch screen
Power supply (Power adapter): 110V~240V (12V,10A)
Power: 45W
Net weight: 5kg
Dimensions: 365mm X 300mm X 150mm

Technical Characteristics / Specifications

• High-performance CCD light-sensitive part
• Automatic measurement of refractive index (nD) and sugar degree (Brix)
• Suitable for transparent, translucent, dark, viscous, and other liquid samples
• Peltier temperature control system with 0.1°C accuracy
• High-resolution CCD detector for higher accuracy and avoidance of personal errors
• High brightness LED light source with >100,000 hours service life
• 7-inch color touch screen with Android system and 4GB RAM
• Multiple data interfaces: RS232, USB, SD card, U disk, Internet
• Power supply: 110V~240V (12V, 10A), 45W
• Net weight: 5kg
• Dimensions: 365mm x 300mm x 150mm
