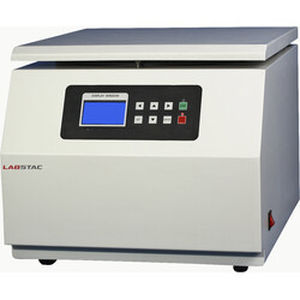

Laboratory centrifuge CEN15-05C

for researchfor life sciences applicationsmedical

Product Overview
These centrifuges are widely used in the fields of biochemistry, pharmacy, clinical medicine and other research fields for variety of separation needs. The programmable microprocessor centrifuge allows modification of the parameter during operation. In addition, accommodates various type of tubes or plates and size of the sample.

• Used in: Cell Separation, Precipitation, Sample Processing, Clinical, Cell Culture, Microplate Processing, Biochemistry, medical diagnosis
• Also known as: Floor Standing Centrifuge, Laboratory Floor Type Centrifuge, Benchtop Centrifuge, Non Refrigerated High Speed Centrifuge, Laboratory Tabletop Centrifuge

Key Features

• LCD display
• Automatic Blood Collection Tube Decapping at the end of the process, prevent user from being infected by pathogenic bacteria.
• Brushless DC motor
• Inner chamber material: Stainless Steel
• Electronic door interlock
• Memory of 12 programs
• 19 levels of acceleration and 19 levels of deceleration

Specifications
Maximum Capacity (No of tubes x Vol.): 4X250 ml
Maximum Speed: 5000 rpm with 4 x 250 ml rotor
Speed Accuracy: ± 10 rpm
Maximum RCF: 5200xg with 4 x 250 ml rotor
Time Range: 1~9999 min 59 s, Pulse, Continuous
Acceleration Rate: 19
Deceleration Rate: 19
Drive System: Direct, induction motor drive
Overall Dimension: 17.7x22x16.3 in /45x56x41.5 mm
Program: 12 user-defined
Noise Level: ≤ 60 dB(A)
Weight (Net/Gross): 50 kg
Max. Power Consumption: 600 W
Power Supply: AC 200-240V, 50/60Hz or AC 100-127V, 50/60Hz

Optional Accessories
Accessory Code | Name | Rotor Capacity | Max Speed (rpm) | Max RCF(g)
2201315005 | No. 1 Swing-Bucket Rotor | 4x250 ml | 5000 rpm | 5200Xg
2201315006 | No. 2 Swing-Bucket Rotor | 56x1.6-7 ml blood collection tube | 4000 rpm | 3400Xg
2201315007 | No. 3 Swing-Bucket Rotor | 80x1.6-7 ml blood collection tube | 4000 rpm | 3400Xg

Technical Characteristics / Specifications

• LCD display
• Automatic Blood Collection Tube Decapping
• Brushless DC motor
• Stainless Steel inner chamber
• Electronic door interlock
• Memory for 12 programs
• 19 acceleration and deceleration levels
• Maximum Capacity: 4x250 ml
• Maximum Speed: 5000 rpm
• Speed Accuracy: ±10 rpm
• Maximum RCF: 5200xg
• Time Range: 1~9999 min 59 s, Pulse, Continuous
• Drive System: Direct, induction motor drive
• Overall Dimension: 17.7x22x16.3 in / 45x56x41.5 mm
• Noise Level: ≤ 60 dB(A)
• Weight: 50 kg
• Max. Power Consumption: 600 W
• Power Supply: AC 200-240V, 50/60Hz or AC 100-127V, 50/60Hz
