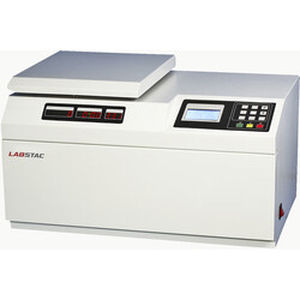

Laboratory centrifuge CEN17-16R

for biologyfor researchmedical

Product Details
These centrifuges are widely used in the fields of biochemistry, pharmacy, clinical medicine and other research fields for variety of separation needs. The programmable microprocessor centrifuge allows modification of the parameter during operation. In addition, accommodates various type of tubes or plates and size of the sample.

• Used in: Cell Separation, Precipitation, Sample Processing, Clinical, Cell Culture, Microplate Processing, Biochemistry, medical diagnosis
• Also known as: Floor Standing Centrifuge, Laboratory Floor Type Centrifuge, Floor Type Refrigerated Centrifuge, Benchtop Centrifuge, Laboratory Tabletop Centrifuge

Key Features

• Inner chamber material: Stainless Steel
• Microprocessor controller
• LCD display
• Electronic door interlock

Features

• Inner chamber material: Stainless Steel
• Microprocessor controller
• LCD display
• Electronic door interlock
• Automatic rotor identification
• Imbalance protection
• Brushless DC motor
• Memory of 12 programs
• 19 levels of acceleration and 19 levels of deceleration
• Faults are diagnosed automatically
• CFC-free refrigerants system (TECUMSEH EUROPE COMPRESSOR)
• Precise temperature control with double loop control design is highly efficient, allows fast heating and cooling
• Operating parameters can be modified during the operation
• RCF can be set up directly, without RPM to RCF translation

Specifications
Maximum Capacity (No of tubes x Vol.): 12x10 ml
Temp. Control Range: -20°C to 40°C increments
Temperature Accuracy: ± 1°C
Maximum Speed: 16500 rpm
Speed Accuracy: ± 10 rpm
Maximum RCF: 21630xg
Time Range: 1~99 h 59 min, pulse
Temp. Accuracy: ±1 °C
Acceleration Rate: 40
Deceleration Rate: 40
Drive System: Direct, Induction motor drive (Inverter Control)
Rotor Identification: Auto-ID Instant, Automatic
Refrigeration System: CFC-Free
Overall Dimension: 24.6 x 16.5 x 14.1 in / 62.5 x 42 x 36 mm
Program: 12 user-defined
Noise Level: ≤ 60 dB(A)
Weight (Net/Gross): 50 kg
Max. Power Consumption: 1000 W
Power Supply: AC 200-240V, 50/60Hz or AC 100-127V, 50/60Hz

Optional Accessories
Accessory Code | Name | Rotor Capacity | Max Speed (rpm) | Max RCF(g)
2201221005 | No. 1 Fixed-Angle Rotor | 12x1.5/2.0 ml (with adapters for 0.2/0.5ml tube) | 16500 rpm | 19000Xg
2201221006 | No. 2 Fixed-Angle Rotor | 12x5 ml | 15000 rpm | 18270Xg
2201221007 | No. 3 Fixed-Angle Rotor | 24x1.5/2.0 ml (with adapters for 0.2/0.5ml tube) | 15000 rpm | 21630Xg
2201221008 | No. 4 Fixed-Angle Rotor | 12x10 ml | 12000 rpm | 13310Xg
2201221009 | No. 5 Fixed-Angle Rotor | 48x1.5/2.0 ml (with adapters for 0.2/0.5ml tube) | 12000 rpm | 15970Xg

Technical Characteristics / Specifications

• Inner chamber material: Stainless Steel
• Microprocessor controller
• LCD display
• Electronic door interlock
• Automatic rotor identification
• Imbalance protection
• Brushless DC motor
• Memory of 12 programs
• 19 levels of acceleration and 19 levels of deceleration
• Faults are diagnosed automatically
• CFC-free refrigerants system (TECUMSEH EUROPE COMPRESSOR)
• Precise temperature control with double loop control design
• Operating parameters can be modified during the operation
• RCF can be set up directly, without RPM to RCF translation
• Maximum Capacity: 12x10 ml
• Temp. Control Range: -20°C to 40°C increments
• Temperature Accuracy: ± 1°C
• Maximum Speed: 16500 rpm
• Speed Accuracy: ± 10 rpm
• Maximum RCF: 21630xg
• Time Range: 1~99 h 59 min, pulse
• Acceleration Rate: 40
• Deceleration Rate: 40
• Drive System: Direct, Induction motor drive (Inverter Control)
• Rotor Identification: Auto-ID Instant, Automatic
• Refrigeration System: CFC-Free
• Overall Dimension: 24.6 x 16.5 x 14.1 in / 62.5 x 42 x 36 mm
• Program: 12 user-defined
• Noise Level: ≤ 60 dB(A)
• Weight (Net/Gross): 50 kg
• Max. Power Consumption: 1000 W
• Power Supply: AC 200-240V, 50/60Hz or AC 100-127V, 50/60Hz
