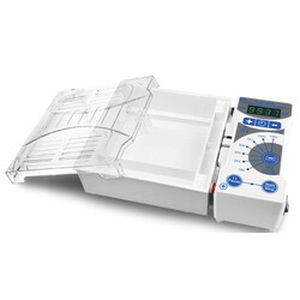

DNA electrophoresis chamber GEL20-500

for RNAfor proteinsfor forensics

Product Details
Gel instrument is a technique used in laboratory to separate charged molecules like DNA, RNA and proteins according to their size. Gel electrophoresis instruments are commonly used to run and compare DNA samples.

• Used in: Forensic, molecular biology, genetics, microbiology labs, gel electrophoresis instruments
• Also known as: Laboratory Gel instrument

Key Features

• New and unique appearance, mini and portable; The electrophoresis tank and power can be separated
• The cover with safely design, flip cover immediately power off, to ensure safety; Transparent cover and open hole design, easy to heat dissipation and observation; Top handle design, easy to pick and place
• With seven output voltages, it can be called with one button, which is convenient and fast, saving standby consumption
• Specially designed Electrophoresis shape, reducing the temperature difference between the buffer, while the heat benefit is improved. Put the gel into a limited position without drift
• With the pause function, timing function, can leave after press the start button, with Alarm function, buzzer alert at the end
• Highlight digital tube displays the set parameters, default remember the output voltage and time Settings of the previous operation
• When the electrophoresis current exceeds the peak current, will automatically adjust the voltage to reduce the current value, improve the experimental reproducibility
• Equipped with variety of specifications of gel trays / combs, compatible with a variety of experimental needs, compatible with high-throughput electrophoresis and multi-channel pipette operation

Specifications
Capacity: Max.500ml
Multi-channel suitability: Suitable for multi-channel pipettor
Timing function: 1min~99h59min or continu, with pause function
Security Settings: The power is automatically paused when the cover is lifted
Storage function: Automatically memorize the previous operating voltage and time
Inner diameter dimension: 150x150x47 mm
Dimensions: 260x170x68 mm
Input power: AC110V,50/60Hz
Net weight: 0.78kgs
Output voltage: Constant peak voltage (140V), impulse control
Optional output voltage: 135V 100V 70V 50V 35V 25V 18V

Optional Accessories
Accessory Code | Name | Dimension | Quantity
4300805005 | Small size plate for gel | 60mmx60mm | 2
4300805006 | Medium size plate for gel | 120mmx60mm | 1
4300805007 | Big size plate for gel | 120mmx120mm | 1
4300805008 | Gel Comb 1 | 1.0mm thickness 25/11 teeth (Can used multichannel gun to add sample) | 4
4300805009 | Gel Comb 2 | 1.5mm thickness 18/8 teeth | 1
4300805010 | Gel Comb 3 | 1.5mm thickness 13/6 teeth | 1
4300805011 | Gel Comb 4 | 2.0mm thickness 3/2 teeth | 1
4300805012 | Base for gel making (double side) | 138mmx138mmx36mm | 1

Technical Characteristics / Specifications

• Capacity: Max.500ml
• Multi-channel suitability: Suitable for multi-channel pipettor
• Timing function: 1min~99h59min or continu, with pause function
• Security Settings: The power is automatically paused when the cover is lifted
• Storage function: Automatically memorize the previous operating voltage and time
• Inner diameter dimension: 150x150x47 mm
• Dimensions: 260x170x68 mm
• Input power: AC110V,50/60Hz
• Net weight: 0.78kgs
• Output voltage: Constant peak voltage (140V), impulse control
• Optional output voltage: 135V 100V 70V 50V 35V 25V 18V
