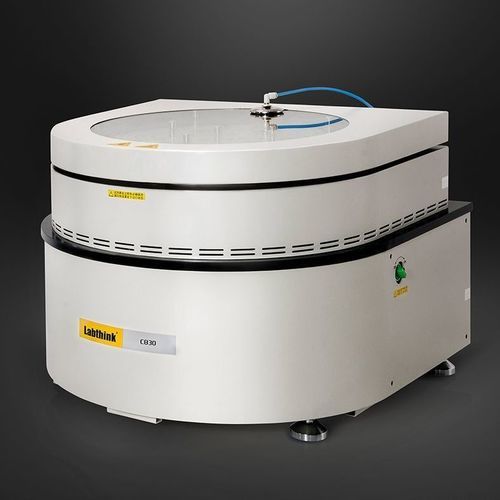

Overall migration tester C830H

loss on dryingnon-volatile matterresidue on evaporation (ROE)

C830H Migration & Non-volatile-matter Content Tester is a highly integrated automatic instrument for determination of migration and non-volatile contents of packaging materials used in food and pharmaceuticals. It integrates evaporation, drying and weighing in an automated workflow and supports fast evaporation modes and reagent recycling to improve throughput and safety.

Features

• Professional
  • Integrated test sequence combining evaporation, drying and precise weighing; supports reagents such as trichloromethane, acetic acid, ethanol, n-hexane and others.
  • Safe procedure: evaporated reagent is collected and routed via dedicated gas piping, eliminating need for additional gas-handling systems in the lab.
  • Reagent recycling: efficient recovery (up to ~90% for n-hexane under specified conditions) without introducing external contamination.
  • Fully automatic operation with precision automatic weighing to reduce operator error and ensure stable constant-weight measurement.
  • Dedicated constant-temperature chamber and weighing system for improved measurement accuracy.
• High Efficiency
  • Fast-evaporation technology reduces evaporation time by heating the reagent close to boiling point.
  • Airtight test chamber with automatic open/close for safe and simplified operation.
  • Gas-balancing technology lowers evaporated reagent concentration quickly to improve evaporation efficiency and safety.
  • Multiple test modes: proportional, standard, differential and fast modes for flexible process control.
  • Standard configuration with 9 independent working stations; optional extended mode supports from 9 to 90 stations.
• Intelligent
  • Embedded Labthink operating software with user-friendly interface, intelligent data processing, strict user management and secure storage.
  • Optional DataShield™ for encrypted storage and protected test reports.
  • Test data display in curves and lists; search, export and print functions available.

Test Principle

• Total Migration
  The specimen is immersed in a food-simulating solution; after evaporation to dryness the total migration of non-volatile contents is measured by weighing the residue.
• Non-volatile-matter Content
  The specimen is immersed in a standard reagent; after evaporating the reagent and a blank to dryness, the non-volatile-matter content is obtained by comparison with the blank.

Test Standards

• ISO 759-1981; GB 31604.8-2016; GB/T 9740-2008; YBB00342002-2015; YBB00132002-2015, etc.

Applications

• Packaging and food contact materials
  • Determination of migration from packaging materials such as PE, polystyrene, PVC, PP, melamine, EPS and plant-fiber materials.
  • Migration testing of rubber gaskets, sealing rings, nipples and tubes used in food processing.
  • Assessment of migration from interior coatings of food containers (e.g. vinylidene chloride, epoxy novolac, polyamide epoxy resin, PTFE).
• Pharmaceutical packaging
  • Determination of non-volatile-matter content for transfusion bottles, eye-drop bottles, oral liquid vials, bags and closures (LDPE, HDPE, PP, PET), multilayer films and rigid sheeting for medical use, PE/Al/PE tubes, halogenated butyl rubber closures, gaskets and protective caps.

Technical specifications

• Model: C830H
• Test range: 0.3 ~ 80,000 mg
• Resolution: 0.1 mg
• Repeatability: 0.3 mg
• Test temperature: Room temperature ~ 130 °C
• Temperature accuracy: ±0.5 °C
• Additional functions: Fast Evaporation Mode (standard); Reagent Recycling Function (standard); Acid/Alcohol/Alkane tests (standard); Extended Working Station (optional); DataShield™ (optional)
• Number of working stations: 9 independent stations (extension to 9–90 stations optional)
• Test cup capacity: 200 ml (customization available)
• Gas supply: Compressed air (power gas) or high-purity nitrogen (99.999%, balance gas) — gas supply not included
• Gas supply pressure: ≥ 0.6 MPa
• Port size: Φ6 mm PU tubing
