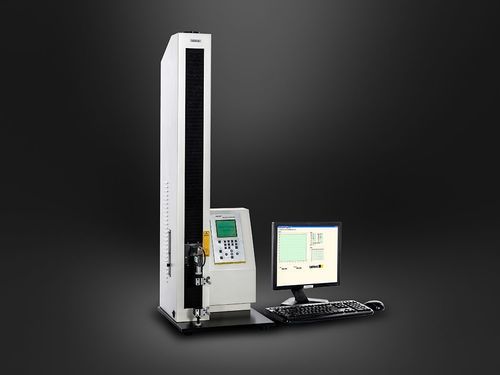

Control tester XLW (PC)

tensilefor medical devicesfor packaging

The XLW (PC) automatic tensile tester is designed to determine force-related properties of flexible packaging materials and similar samples. It offers multiple test modes, long stroke capability and integrated software for test control and data analysis.

Features

• Accuracy: 0.5% of full scale (FS) for reliable force measurement.
• Seven independent test modes covering tensile strength, peel, tear and other force properties.
• 1000 mm extra-long stroke to accommodate samples with large elongation.
• Multiple load-cell ranges available (e.g., 50 N, 100 N, 250 N, 500 N) and seven selectable test speeds.
• Micro-computer control with menu interface, PVC operation panel and large LCD for straightforward operation.
• Intelligent protection: over-travel, overload protection, automatic position reset and power-failure memory.
• Professional software supporting statistical analysis of specimen groups, curve overlay, historical data comparison and report generation.
• Supports Lystem™ Lab Data Sharing System for centralized result management.

Principle

• Pre-conditioned specimen is clamped between two grips which move relatively during the test.
• Force is recorded by a load cell fixed to the driven grip; displacement is recorded by an embedded displacement transducer.
• Tensile strength, tear strength and elongation are calculated from recorded force and displacement data.

Standards

• ISO 37
• GB 8808
• GB/T 1040.1-2006
• GB/T 1040.2-2006
• GB/T 1040.3-2006
• GB/T 1040.4-2006
• GB/T 1040.5-2008
• GB/T 4850-2002
• GB/T 12914-2008
• GB/T 17200
• GB/T 16578.1-2008
• GB/T 7122
• GB/T 2790
• GB/T 2791
• GB/T 2792
• GB/T 17590
• ASTM E4
• ASTM D882
• ASTM D1938
• ASTM D3330
• ASTM F88
• ASTM F904
• JIS P8113
• QB/T 2358
• QB/T 1130

Applications

• Basic applications
  • Shearing test
  • Tensile strength and elongation rate
  • Tensile strength at break
  • Tear resistance test
  • Heat-seal strength test
  • 90° peel test
  • 180° peel test
• Extended applications (accessories required)
  • Puncture test of hypodermic needles on artificial skin
  • Puncture test of films and infusion bags
  • Puncture/pullout test of flexible rubber closures and bottle caps
  • Opening resistance test of combined covers and yogurt/jelly cups
  • Tear tests (ZD-type caps, trouser method)
  • Peel tests of adhesive tapes, release paper, magnetic cores/cards
  • Adhesive strength tests (soft and hard)
  • Pullout tests of cosmetic and toothbrush bristles
  • Compression and opening-force tests for containers and seals
  • Wide range of grips and fixtures available for special samples

Technical specifications

• Model: XLW (PC)
• Load cell capacity: 500 N (standard); optional 50 N, 100 N, 250 N
• Accuracy: 0.5% FS
• Number of specimens: 1
• Test speeds (mm/min): 50, 100, 150, 200, 250, 300, 500
• Specimen width: 30 mm (standard grip); 50 mm (optional)
• Stroke: 1000 mm
• Instrument dimensions (L x W x H): 450 x 450 x 1410 mm
• Power supply: 220 VAC 50 Hz / 120 VAC 60 Hz
• Net weight: 68 kg
• Standard configuration: main unit, universal grips, professional software, communication cable
• Optional parts: pressure roller, test plate, sample cutter, customized grips
