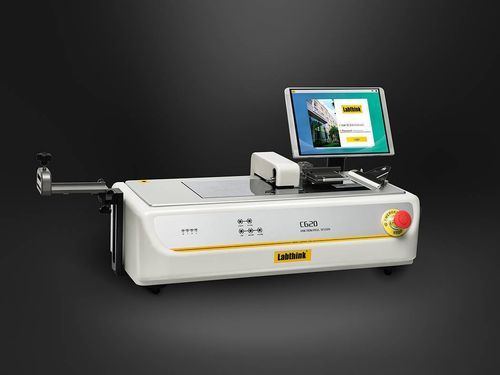

Friction tester C620H

coefficient of frictionlaboratoryfor packaging

A laboratory tester for measuring static and kinetic coefficient of friction (COF) and peel strength on films, sheets, foils, paper, textiles and adhesive-laminated products. Combines automatic sled lifting, integrated temperature control and embedded computer control for repeatable, high-precision testing.

Product Features

• Two test modes: coefficient of friction (COF) and peel test.
• Automatic sled lifting ensures precise still time and high repeatability of COF results.
• Sliding plane and sled demagnetized with remanence detection to reduce system errors.
• Wide-range, high-precision automatic temperature control supporting tests at different temperatures (RT–100°C).
• Force measurement system from a global supplier; accuracy: displayed value ±0.5% (10%FS–100%FS) and ±0.05%FS (0%–10% of load cell range); multiple ranges available.
• Safety features: position limit, overload protection and auto reset.
• Conforms to multiple ISO, ASTM, TAPPI and GB standards.

Embedded computer controlled system

• Large touch-screen tablet for clear viewing and operation.
• User-friendly software simplifying test setup and execution.
• Supports comparative analysis of test groups and unit conversion.
• USB and network ports for data transfer and external connection.
• Optional GMP compliance.
• Labthink data security options: separation of test data and optional DataShield™ for data management and instrument networking.

Test Standards

• ISO 8295
• ISO 8510-2
• ASTM D1894
• ASTM D4917
• ASTM D3330
• TAPPI T816
• TAPPI T549
• GB 10006
• GB/T 2790
• GB/T 2791
• GB/T 2792

Applications

• Basic Applications
  • Plastic films and sheets — static and dynamic COF tests.
  • Paper and paperboard — static and dynamic COF tests.
  • Textiles, non-wovens and woven bags — COF tests.
  • Rubber products — COF tests.
  • Aluminum foils and composite films — COF tests on metal and composite foils.
  • Printing substrates — COF tests for printed materials.
  • Adhesives — peel strength testing of adhesive products.
  • Medical adhesives (bandages, plasters) — peel tests.
  • Protection films for phones and computers — peel tests.
  • Magnetic cards — peel tests of films and coatings.
• Extended Applications
  • High-temperature COF tests (above room temperature).
  • Wood and flooring — COF tests.
  • Photographic films — COF tests.
  • Mobile phone screens and leather — COF between screens and leather products.

Technical specifications

• Model: C620H
• Test range: 0 ~ 5 N (standard); optional 0 ~ 10 N, 0 ~ 30 N, 0 ~ 50 N, 0 ~ 100 N.
• Force accuracy: displayed value ±0.5% (10%FS–100%FS); ±0.05%FS (0%–10% of load cell range).
• Force resolution: 0.001 N.
• Test speed: 0 ~ 500 mm/min (integer settings).
• Speed accuracy: displayed value ±0.5% (1%~100% of max speed).
• Stroke: 10 ~ 300 mm.
• Displacement resolution: 0.01 mm.
• Test temperature: room temperature ~ 100°C.
• Temperature variation: ±0.2°C.
• Temperature accuracy: ±2°C (single-point calibration, within effective platform area).
• Test platform: 400 mm × 150 mm.
• Specimen thickness: ≤ 2 mm.
• Sled: weight 200 g; size 63.5 mm × 63.5 mm; customizable.
• Power supply: 220 VAC ±10% 50 Hz / 120 VAC ±10% 60 Hz.
• Instrument dimensions: 635 mm (L) × 300 mm (W) × 250 mm (H).
• Net weight: 25 kg.
• Standard configurations: instrument, tablet, COF fixture, peel fixture, 200 g sled, sampling block.
• Optional parts: pressure roller, test plate, printer, GMP system, DataShield™ (optional).
