Humidity tester MXD-02controltemperaturecoefficient of friction
Add to favorites
Compare this product
Characteristics
- Tested parameter
- temperature, control, humidity, coefficient of friction
- Applications
- laboratory, for the pharmaceutical industry, for the food industry, for packaging
- Operating mode
- automatic
- Configuration
- benchtop
- Weight
33 kg
(72.8 lb)- Width
360 mm
(14.2 in)- Height
230 mm
(9.1 in)
Description
Overview
Key features
Standards
Applications
Specifications

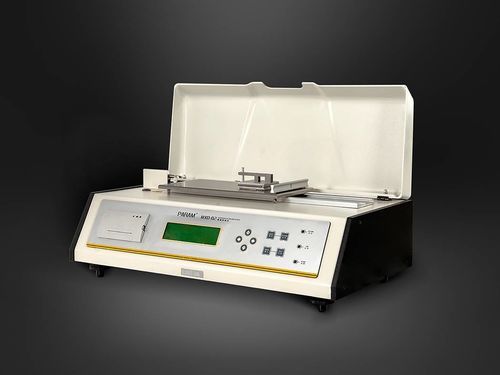

- The MXD-02 is a laboratory coefficient of friction (COF) tester for measuring static and kinetic friction of films, sheets, rubber, paper, textiles, woven bags, metal-composite strips and other materials used in industrial quality control.
- Designed for repeatable COF evaluation to support production process control, material selection and product qualification.
Key features
- Accurate measurement of static and kinetic COF for each specimen with selectable test methods.
- Compliance with ISO, ASTM, TAPPI and GB standards; multiple test modes selectable.
- Preset and adjustable test speeds (100 mm/min, 150 mm/min) and two stroke options (70 mm, 150 mm).
- Customizable sled masses (standard 200 g; optional 500 g) to match specific test protocols.
- Sliding plane and sled treated by degaussing and remanence detection to reduce measurement error.
- Micro-computer control with LCD, PVC operation panel and menu interface for straightforward operation.
- Professional software for statistical analysis (single/group samples), curve overlay and historical-data comparison.
- Data output via RS232 and micro-printer; compatible with Lystem™ Lab Data Sharing System for centralized data management.
Standards
- ISO 8295
- ASTM D1894
- TAPPI T816
- GB 10006
Applications
- Basic applications
- Plastic films and sheets: static and dynamic COF measurements for packaging and film processing.
- Paper and paperboard: COF testing to support printing and handling performance control.
- Textiles, non-wovens and woven bags: surface friction tests for handling and processing.
- Rubber: static and kinetic friction evaluation for rubber components.
- Aluminum foils, composite films and metal products: sensitive friction measurement for process control.
- Printed materials: friction analysis to support ink adhesion and finishing processes.
- Extended applications
- Wood and flooring: slip-resistance and material studies.
- Photographic films and coated films: coating quality control.
- Grains and bulk materials: friction against metal surfaces for handling design.
- Hair and fibers: friction tests for texture and compatibility analysis.
- Pipes and tubular products: friction evaluation for pipeline materials.
- Ball-shaped materials and mechanical parts: friction of spherical items on flat surfaces.
- Medical tubes and artificial skin: biomedical material evaluation.
- Lacquered wires: friction testing for insulation and process control.
Specifications
- Model: MXD-02
- Capacity range: 0 ~ 5 N
- Accuracy: 0.5% FS
- Stroke: 70 mm, 150 mm
- Mass of sled: 200 g (standard); customizable (e.g. 500 g)
- Test speed: 100 mm/min, 150 mm/min (adjustable)
- Environment: Temperature 23±2°C; Humidity 20%RH ~ 70%RH
- Power supply: 220VAC 50Hz / 120VAC 60Hz
- Instrument dimensions: 630 mm (L) x 360 mm (W) x 230 mm (H)
- Net weight: 33 kg
- Standard configuration: instrument, micro-printer and 200 g sled
- Optional parts: professional software, communication cable, customized 500 g sled
