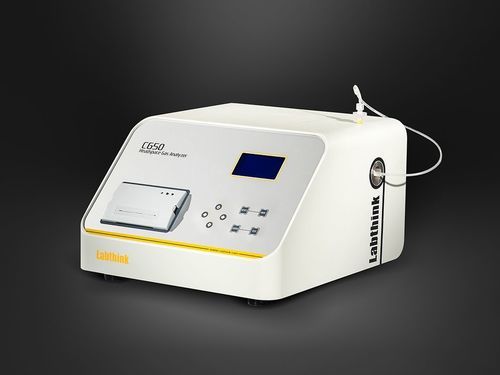

Control analyzer C650H

CO2oxygenO2

The C650H Headspace Gas Analyzer is a portable instrument designed for fast, accurate determination of O2 (standard) and optional CO2 in sealed pouches, bottles, cans and other hollow packaging. It suits production lines, warehouses and laboratories for process control and product inspection.

Product Features

• High-precision ceramic oxygen sensor developed by Labthink, ensuring good repeatability.
• Non-consumable ceramic O2 sensor with long service life.
• PC material operation panel with menu interface and LCD for straightforward operation and result display.
• Bilingual user interface available in Chinese and English.
• Microcomputer control system for data analysis, processing and report output.
• Embedded micro printer for on-site printout of test results.
• Built-in data storage supporting large-volume recording.
• Portable benchtop form factor for laboratory and production use.
• RS232 interface and dedicated software for PC connection and data import/export.

Test Principle
The sample's headspace gas is drawn into the sensor by a vacuum pump. The sensor outputs real-time current and voltage signals proportional to O2 and optionally CO2 concentrations. The instrument computes gas content from these signals, stops when end conditions are met and records measured concentrations.

Test Applications

• Pouches / Bags
  Determination of O2 and optional CO2 in non-negative-pressure pouches and packaging bags such as coffee, cheese, milk tea, powdered milk, bread, soybean powder, modified atmosphere packaging, ready-to-eat food and pharmaceuticals.
• Packaging Containers
  Determination of O2 and optional CO2 in cans, Tetra Pak, beverage containers and similar packaging containers.
• Extended Applications — Ampoule Bottles
  Measurement of O2 and optional CO2 concentration in the headspace of ampoules and small bottles.

Product Configuration

• Standard configuration: Main unit, micro printer, sampling needle, filter and gasket.
• Options: CO2 sensor, professional software, communication cable, hard-package sampler, underwater sampling device.

Technical Specifications

• Type of gas measured: O2 (standard); CO2 (optional).
• Measuring range: O2: 0.2%–21%; CO2 (optional): 2%–100%.
• Measurement accuracy: O2: ±0.2%; CO2 (optional): ±2%.
• Sample size: O2: ≥ 5 ml (standard atmospheric pressure); CO2: ≥ 20 ml (standard atmospheric pressure).
• Dimensions: 350 mm (L) × 330 mm (W) × 200 mm (H).
• Power supply: 220 VAC 50 Hz / 120 VAC 60 Hz.
• Net weight: 5.5 kg.
