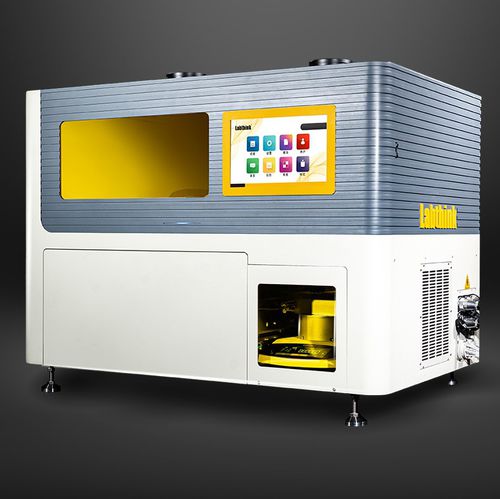

Control testing system C870H

for medical deviceslaboratoryfor the food industry

Overview The C870H Integrated Loss on Drying (LOD) Testing System is a gravimetric instrument designed for loss-on-drying and moisture content determination in pharmaceutical, food and chemical industries. It is built to meet pharmacopoeias and relevant industry testing standards and is intended for routine laboratory and QA/QC use.

Product Features
Precise, Traceable, and Convenient Measurement

• Independent dual-chamber design separates drying and weighing to eliminate high-temperature effects on the balance.
• Automatic sample-weight detection reduces operator variability.
• High-precision touchscreen electronic balance (German-made) with repeatability to 0.05 mg.
• Visualized balance operation and full data traceability.
• Internal calibration balance for fast removal and straightforward measurement.

Safe and Compliant: Standardized Processes for Safer Operation

• Automatic opening/closing of test cup covers to ensure compliant sample handling.
• Automatic temperature adjustment to enable true room-temperature weighing.
• Fully enclosed, zero-leakage test chamber to prevent hazardous gas emission.
• Nitrogen circulation and discrete electrical control systems provide dual safety protection.
• Multiple sensors and audible/visual alarms enhance operational safety.

Intelligent and Efficient: Fully Automated Process

• Fully automatic gripper handles up to 36 test cups for rapid, repeatable movement.
• Bidirectional rotation control and adjustable rotating cup count simplify filling workflows.
• Automatic liquid cooling (fill/drain/level detection) reduces manual interventions.
• Drying, cooling and room-temperature weighing are fully automated without operator presence.
• 12.1" medical-grade touchscreen enables stand-alone operation of the instrument host.
• Desktop host design saves bench space and fits various lab layouts.
• Embedded network port supports remote control and firmware/software upgrades.
• Professional software supports GMP data traceability and multi-level user access; electronic signature designed per 21 CFR Part 11 (optional).

Testing Principle Mix the sample thoroughly (crush large crystals to
Reference Standards

• US Pharmacopeia (USP), European Pharmacopoeia (EP), British Pharmacopoeia (BP), Japanese Pharmacopoeia (JP), Chinese Pharmacopoeia (CP)
• Food standards such as GB 5009.3-2016
• Chemical standards such as GB/T 6284 and JIS K 0068

Applications Basic Applications | Pharmaceuticals | Loss-on-drying and moisture determination for pharmaceutical materials.
Extended Applications | Food | Moisture and drying loss determination for food products.
Extended Applications | Chemicals | Loss-on-drying testing for chemical products.

Technical Parameters (Table 1: Test Parameter)
Parameter / Model: C870H
Test Range (mg): 0.05 ~ 20000 ; 0.3 ~ 40000 (optional)
Resolution (mg): 0.01 ; 0.1 (optional)
Repeatability (mg): ±0.05 ; ±0.3 (optional)
Temperature Range (°C): Room Temp. ~ 130
Temperature Fluctuation (°C): ±0.5
Test Pressure (kPa): 0 ~ -20 (customizable)
Extended Functions: 21 CFR Part 11 (optional); GMP computer system requirements (optional)

Technical Specifications (Table 2)
Test Stations: 36
Test Cup Volume: 40 mL (customizable)
Gas Specifications: Compressed air (user-supplied)
Gas Source Pressure: 0.5 MPa ~ 0.7 MPa (72.5 PSI ~ 101.5 PSI)
Port Size: Φ8 mm polyurethane tube
Host Dimensions: 83 cm × 110 cm × 73 cm (32.6” × 43.3” × 28.7”)
Power Supply: 120 VAC ±10% 60 Hz / 220 VAC ±10% 50 Hz (select one)
Net Weight: 200 kg (440 lbs)

Product Configurations (Table 3)
Standard Configuration: Instrument host, balance (0.01 mg), liquid cooling module, gas drying module, 36 test cups, Φ8 mm polyurethane tube.
Optional Parts: Software, GMP computer system requirements, 21 CFR Part 11, air compressor, 40 mL test cups, weights (50 g, 200 g), balance (0.1 mg).

Characteristics / Technical specifications

• Model: C870H
• Test range: 0.05 – 20,000 mg (standard); optional 0.3 – 40,000 mg
• Resolution: 0.01 mg (standard); optional 0.1 mg
• Repeatability: ±0.05 mg (standard); optional ±0.3 mg
• Temperature range: Room Temp. to 130 °C; fluctuation ±0.5 °C
• Test pressure: 0 to -20 kPa (customizable)
• Test stations: 36
• Test cup volume: 40 mL (customizable)
• Gas: Compressed air (user-supplied); gas source pressure 0.5–0.7 MPa
• Port size: Φ8 mm polyurethane tube
• Host dimensions: 83 × 110 × 73 cm
• Power supply: 120 VAC ±10% 60 Hz or 220 VAC ±10% 50 Hz
• Net weight: 200 kg
• Compliance / Software: GMP data traceability support; optional 21 CFR Part 11 and GMP computer system requirements
