Injection cannula Safe Inject

vascular accessstraightdisposable

Product overview

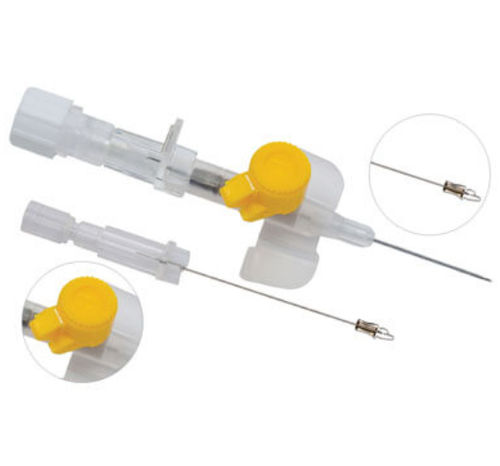

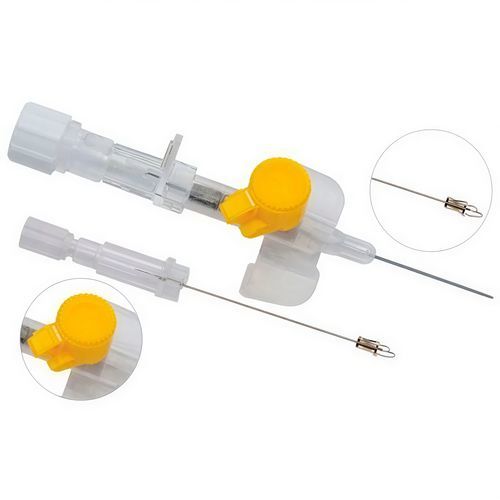

Safe Inject is a single‑use IV cannula with stabilizing wings and an integrated injection valve. It provides reliable peripheral venous access with visual flashback and features designed to reduce occupational exposure during infusion and medication administration.

Key features

• Tribevel needle geometry for smooth venous entry.
• Flashback chamber for immediate visual confirmation of venous access.
• Integrated injection valve and flip port cap for hygienic medication administration without repeated needle use.
• 6% tapered Luer Lock connection for secure, leak‑resistant coupling to standard IV equipment.
• Metallic safety clip to help reduce accidental needle‑stick exposure.
• Stabilizing wings for secure fixation and reduced catheter movement at the insertion site.
• Materials: PTFE or PUR depending on reference.
• Single‑use device, available in multiple gauges for adult and pediatric use.

Packaging / Dimensions

• Sterile, individually blister packed.
• Pack sizes: 50 pcs (inner) or 500 pcs (master carton).
• Master carton dimensions: 45 × 35.5 × 17.8 cm.

Technical specifications

• Available gauges: 14G, 16G, 17G, 18G, 20G, 22G, 24G.
• Typical lengths and flow (examples): 18G – 45 mm (water flow ~90 ml/min); 20G – 32 mm (≈60 ml/min); 22G – 25 mm (≈36 ml/min); 24G – 19 mm (≈20 ml/min).
• IN/Ext (mm): 18G 0.9–1.3; 20G 0.8–1.1; 22G 0.6–0.9; 24G 0.5–0.7.
• Connection: 6% tapered Luer Lock for leak‑proof fit.
• Intended use: Peripheral IV access for infusion and medication administration; single‑use medical device.
