Injection cannula Safe Cath Pro™

IVstraight

Product overview

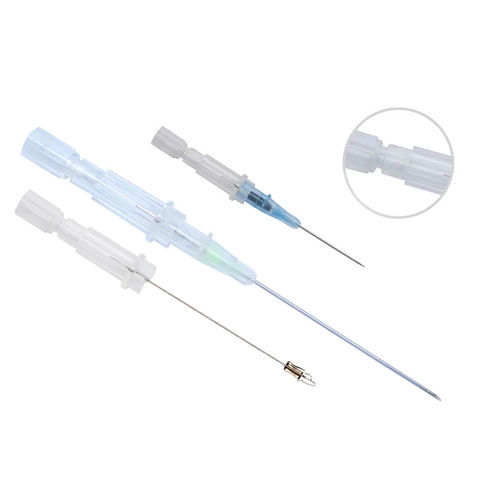

Safe Cath Pro™ is a single-use safety IV catheter with an automatic needle-safety mechanism during insertion and withdrawal. It features a long projection body and an integrated flashback chamber to support reliable peripheral venous access.

Key features

• Automatic needle-safety mechanism activated on insertion/withdrawal
• Trisectional (Tribevel) needle geometry for smoother vein entry
• Instant flashback with translucent hub for clear visualization
• Long-projection body for secure handling and access
• Available materials: PTFE and PUR
• Available gauges: 14G, 16G, 17G, 18G, 20G, 22G, 24G

Technical specifications

• Typical gauge data (examples):
• 18G — Colour: green; Int./Ext.: 0.9–1.3 mm; Length: 45 mm; Water flow: 90 ml/min
• 20G — Colour: pink; Int./Ext.: 0.8–1.1 mm; Length: 32 mm; Water flow: 60 ml/min
• 22G — Colour: blue; Int./Ext.: 0.6–0.9 mm; Length: 25 mm; Water flow: 36 ml/min
• 24G — Colour: yellow; Int./Ext.: 0.5–0.7 mm; Length: 19 mm; Water flow: 20 ml/min

Applications & ordering

• Intended for peripheral venous access in clinical, emergency and perioperative settings
• Manufacturer: Lars Medicare. For orders, customization or regulatory documentation, contact your local distributor

Additional information

• Product video demonstrates the safety clip mechanism; applicable to all variants

Packing details

• Individually sterile blister packs
• Presentation: 50 pieces (inner pack) / 500 pieces (master carton)
• Master carton dimensions: 45 × 35.5 × 17.8 cm
