Immersion thermostat Universa ECO

laboratoryfor water bathsmodular

Product description

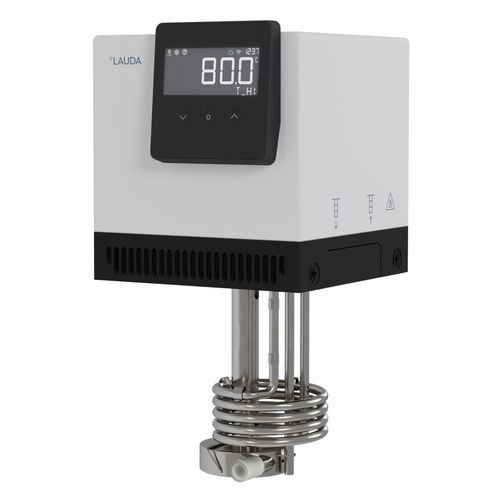

LAUDA Universa ECO immersion circulation thermostats provide precise temperature control for standard laboratory and industrial bath applications up to 100 °C, combining modular design, integrated connectivity and proven safety features for local and remote operation.

Key features

• Immersion circulation thermostat for standard temperature control tasks up to 100 °C with intuitive 3-button operation and bright two-line VA LC display.
• Reliable circulation pump with flow reduction for adapted volume flow and constant discharge pressure (max. 0.2 bar, 15 L/min).
• Integrated Ethernet and USB interfaces plus Wi‑Fi (use/import only in certified countries/regions: USA, Canada, EU incl. UK and Switzerland, India) for robust data communication.
• Modular design with interchangeable control head and heating/cooling base for flexible adaptation.
• Integrated timer with countdown for time-controlled processes; remote control and monitoring via integrated web server, LAUDA Command app or browser (PKI and 2‑factor authentication supported); LAUDA.LIVE compatibility for cloud analysis and remote maintenance.
• Safety features: low-level and overheating protection, audible and visual alarms; intended for use with non-flammable liquids.

Working range

• Min. working temperature: 35 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range: 35 ... 100 °C (20 ... 100 °C with water cooling)
Operating temperature range: -30 ... 100 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Max. power consumption: 2.4 kW
Current consumption: 10 A
Max. discharge pressure: 0.2 bar
Max. pump flow rate: 15 L/min
Dimensions (WxDxH): 195 x 231 x 307 mm
Weight: 4 kg
Power supply / Plug: 200-240 V, 50/60 Hz / Power cord with angled plug (CEE7/7)

Characteristics / technical specifications

• Product line / model: Universa ECO
• Part no.: L003967
• Working temperature range: 35 ... 100 °C (20 ... 100 °C with water cooling)
• Operating temperature range: -30 ... 100 °C
• Temperature stability: 0.05 ± K
• Max. power consumption: 2.4 kW
• Current consumption: 10 A
• Max. discharge pressure: 0.2 bar
• Max. pump flow rate: 15 L/min
• Dimensions (WxDxH): 195 x 231 x 307 mm
• Weight: 4 kg
• Connectivity: Integrated Ethernet, USB, Wi‑Fi, integrated web server, LAUDA Command app and LAUDA.LIVE compatibility
• Display / Operation: Bright VA LC two-line display, 3-button operation
• Safety: low-level and overheating protection, audible and visual alarms
