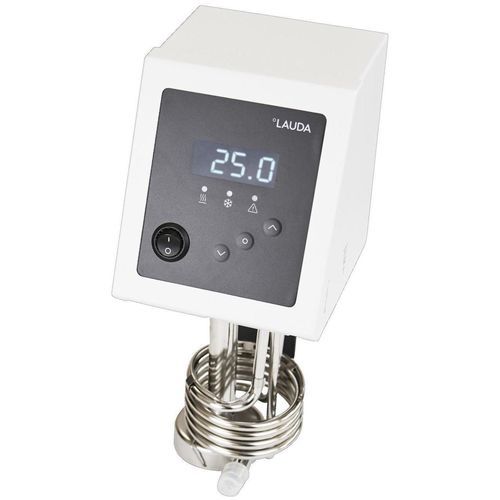

Immersion thermostat Alpha A

laboratorydigitalelectronic

Product description
LAUDA Alpha immersion thermostats combine an intuitive control system with a supplied screw clamp for quick mounting on different bath vessels. Designed for use with non-flammable liquids, they suit baths with up to 30 mm wall thickness and a minimum immersion depth of 150 mm.

Features

• Immersion thermostat with simple operation
• Fully electronic continuous controller
• Circulating pump with flow reduction
• 1-line LED display for actual or set temperature
• Low-level and overtemperature protection for use with non-flammable liquids
• Compatible with baths up to 30 mm wall thickness and min. 150 mm immersion depth
• User-friendly menu with 3-key operation
• Acoustic and visual alarm
• Optional cooling coil and pump circulation set available

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Characteristics / Technical specifications

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power (max.): 1.5 kW
• Max. power consumption: 1.5 kW
• Current consumption: 7 A
• Max. discharge pressure: 0.2 bar
• Max. pump flow: 15 L/min
• Max. bath volume: 50.0 L
• Dimensions (W x D x H): 125 x 150 x 300 mm
• Weight: 4 kg
• Power supply: 220 V; 60 Hz / 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)
