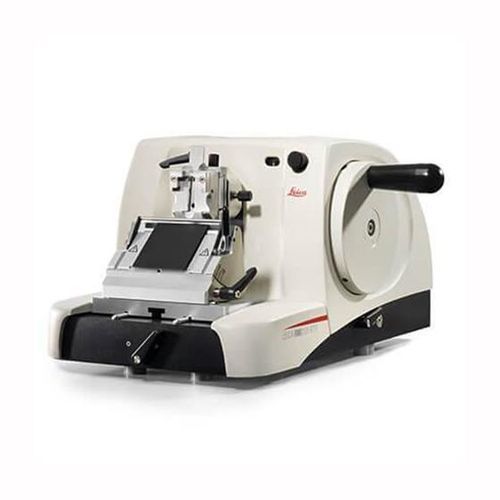

Rotary microtome RM2125 RTS

manuallaboratoryfor histology

Overview
Produce reproducible tissue sections for histology and in vitro diagnostics. The manual rotary microtome Leica RM2125 RTS delivers essential features for safe, economical sectioning and optimized laboratory workflows. For in vitro diagnostic use.

Key features

• Balanced hand wheel: Counter-balanced design provides exceptionally smooth manual operation for controlled sectioning.
• X/Y specimen orientation: Specimen head with ±8° orientation for precise sample positioning.
• Quick-change clamp system: Fast exchange of specimen clamps to streamline workflow.
• Retract function ON/OFF: Approx. 20 µm retraction to reduce cutting artifacts.
• Trim steps: Two mechanical trimming steps (10 µm and 50 µm) for rapid trimming.
• Section range: Adjustable section thickness from 0.5 to 60 µm for a wide range of histology applications.

Configurations

• Basic instrument (14045746960): X/Y specimen orientation, quick-change specimen clamp system, user-selectable coarse feed wheel direction, retract ON/OFF, two mechanical trim steps and storage space on top of the housing.
• Configuration 1 (1492125RTS1): Basic instrument plus disposable blade holder and universal cassette clamp.
• Configuration 2 (1492125RTS2): Basic instrument plus disposable blade holder and standard specimen clamp. Section thickness selection: 0.5 to 60 µm.

Downloads

• Product brochures (EN, JP, DE, FR, ES, IT).
• Declaration of Conformity (DoC) for RM2125 RTS.
• IFU and SDS documents and accessory safety data sheets.

Technical specifications

• Dimensions (W x D x H): 438 mm x 472 mm x 265 mm
• Weight (without accessories): 29 kg
• Section thickness setting range: 0.5 - 60 µm
• Total horizontal specimen feed: 25 mm
• Vertical specimen stroke: 59 mm
• Specimen retraction: ON/OFF approx. 20 µm
• Specimen orientation: X/Y ±8°
• Trimming thickness: 10 µm, 50 µm
