Optical microscope DM6 M

for materials researchuprightdifferential interference contrast

Overview

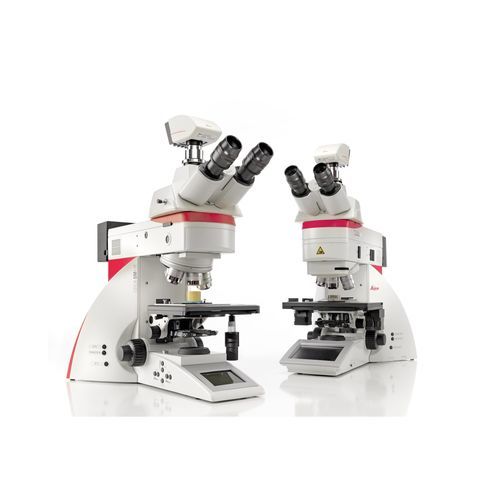

The Leica DM4 M and Leica DM6 M are upright materials microscopes designed for imaging, measurement and analysis across multiple samples in materials science and industrial applications. Store-and-recall functions allow instant reproduction of imaging parameters and facilitate consistent operation for users with varying experience levels.

Reproducible Results
In tasks such as steel inclusion rating, particle analysis, phase or grain analysis, reproducibility is critical. The Leica DM4 M and DM6 M deliver reproducible imaging through one-button Intelligent Automation and coded or motorized components that reduce operator variability.

• Reduce processing time: Illumination Manager and Contrast Manager detect contrast technique and objective, adjust aperture and field diaphragms and adapt light intensity automatically.
• Archive and compare settings: Save microscope and camera parameters with Leica Microscope Assistant (Leica LAS Store and Recall Module); settings are archived with images and can be restored anytime.

Configure Components and Software
Select components and LAS X modules to match your workflow. The Leica Application Suite X (LAS X) integrates microscope, camera and software. Optional LAS X modules for materials include Steel Expert, Cleanliness Expert, Grain Expert and Phase Expert.

Key Features — Leica DM4 M (manual routine inspection)
The Leica DM4 M is a manual coded routine inspection system.

• Manual 2-gear focus drive
• Coded 6-fold or 7-fold objective nosepiece
• Manual 3-plate stage with ergonomic placement and programmable buttons
• Illumination Manager and Contrast Manager
• LED illumination for all contrast modes
• Contrast modes: Brightfield (BF), Darkfield (DF/HDF), Differential Interference Contrast (DIC), Polarization (POL), Fluorescence (FL)
• Compatible with Leica Application Suite X (LAS X)

Key Features — Leica DM6 M (motorized, fully automated analysis)
The Leica DM6 M provides motorized drives and extended automation for highest accuracy and reproducibility.

• Motorized high-precision 2-gear focus drive
• Motorized 6-fold or 7-fold objective nosepiece
• Manual or motorized scanning stage
• Touchscreen control (Leica SmartTouch)
• Illumination Manager and Contrast Manager
• LED illumination for all contrast modes
• Contrast modes: BF, DF/HDF, DIC, POL, FL
• Compatible with LAS X; autofocus available with LAS X
• Optional retrofit: LIBS system for combined visual and chemical analysis

Speed and Ergonomics
Operate instruments via Leica SmartTouch, SmartMove remote or programmable function buttons. The DM4 M offers a clear display with six function keys for frequent tasks.

Illumination and Contrast
LED illumination provides stable color temperature across settings, reducing white balance adjustments, improving energy efficiency and providing long lifetime (up to ~72,000 hours). Supported contrast modes include BF, HDF, DIC, FL and POL.

Optical Capabilities
Automated DIC and the 1.25× Panorama objective enable detection of fine details and extended depth of field. DM6 M stores fine adjustments per objective and inserts analyzers or prisms automatically.

Software & Automation
LAS X integrates microscope, software and camera into one workflow. The Store & Recall module archives settings with images. Additional automation and modules are available for materials tasks; autofocus and extended automation features require LAS X.

Technical specifications

• Product family: Upright Materials Microscopes
• Models: Leica DM4 M (manual coded routine inspection), Leica DM6 M (motorized, fully automated materials analysis)
• Headline model on page: Leica DM6 M
• Focus drive: DM4 M manual 2-gear; DM6 M motorized high-precision 2-gear
• Objective nosepiece: coded 6-fold or 7-fold (motorized on DM6 M)
• Stage: DM4 M manual 3-plate; DM6 M manual or motorized scanning stage
• Controls: Leica SmartTouch touchscreen, SmartMove remote, programmable function buttons, six function keys (DM4 M)
• Illumination: LED for reproducible color temperature
• Contrast modes: BF, DF/HDF, DIC, POL, FL
• Automation: Illumination Manager, Contrast Manager, one-button Intelligent Automation, Store & Recall, autofocus (with LAS X)
• Software: Leica Application Suite X (LAS X); optional modules (Steel Expert, Cleanliness Expert, Grain Expert, Phase Expert)
• Optional retrofit: LIBS system (visual & chemical analysis)
• Typical use cases: steel inclusion rating, particle analysis, phase/grain analysis, industrial materials QA/QC and research
