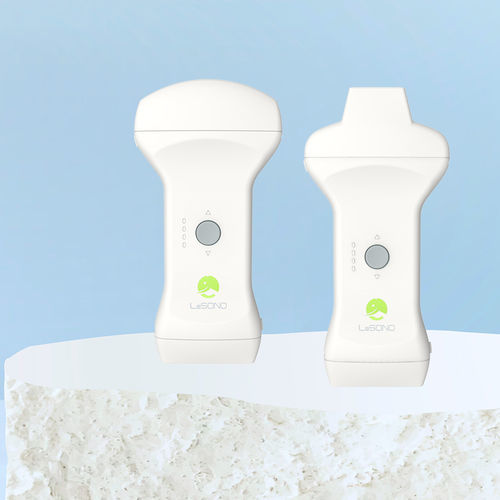

Hand-held ultrasound system LX series

for abdominal and pelvic ultrasound imagingcolor dopplerB/W

192 Elements for Sharper Details - Dual-probe 3-in-1 design: Combines convex, linear, and cardiac presets for versatile imaging. - Rapid switching between imaging modes for abdominal, vascular, musculoskeletal (MSK), and cardiac exams, enabling fast diagnostics. - Models: LX192LC and LX128LC (Convex + Linear + Cardiac), LX128LP (Linear + Phased Array). - Wireless handheld ultrasound device optimized for cardiac and vascular assessments (LX128LP). - Compact design, clear imaging, and fast start-up for rapid diagnostics. Specifications - Frequency Bandwidth: 4.2 - 12.5 MHz (L12-5), 2.0 - 5.0 MHz (C5-2), 1.3 - 3.7 MHz (P4-2) - Max Depth: 18.8 cm (L12-5), 30 cm (C5-2, P4-2) - Field of View: 60° (C5-2), 90° (P4-2) - Wi-Fi: 802.11 a/b/g/n (2.4GHz, 5GHz) - Display mode: B mode, M mode, Color Doppler*, Power Doppler*, Pulsed Wave* - Battery Working Time: Up to 2 hours - Dimension: 145 x 70 x 34 mm or 147 x 70 x 34 mm - Weight: 266 g or 278 g - Waterproofing & Dustproofing: IP67 Availability depends on different regions. *Optional features. LX series are splash, water, and dust resistant and were tested under controlled laboratory conditions with a rating of IP67 under IEC standard 60529 (maximum depth of 1 meter up to 30 minutes). Splash, water, and dust resistance are not permanent conditions. Resistance might decrease as a result of normal wear. Do not attempt to charge a wet probe; refer to the user guide for cleaning and drying instructions. Liquid damage is not covered under warranty. Technical Specifications / Features - Dual-probe design: Convex, Linear, Cardiac (3-in-1) - Frequency Bandwidth: 1.3 - 12.5 MHz (depending on probe) - Maximum Depth: up to 30 cm - Wi-Fi: 802.11 a/b/g/n (2.4GHz, 5GHz) - Display Modes: B mode, M mode, Color Doppler*, Power Doppler*, Pulsed Wave* - Battery Working Time: Up to 2 hours - Dimensions: 145 x 70 x 34 mm or 147 x 70 x 34 mm - Weight: 266 g or 278 g - Waterproof/Dustproof: IP67
